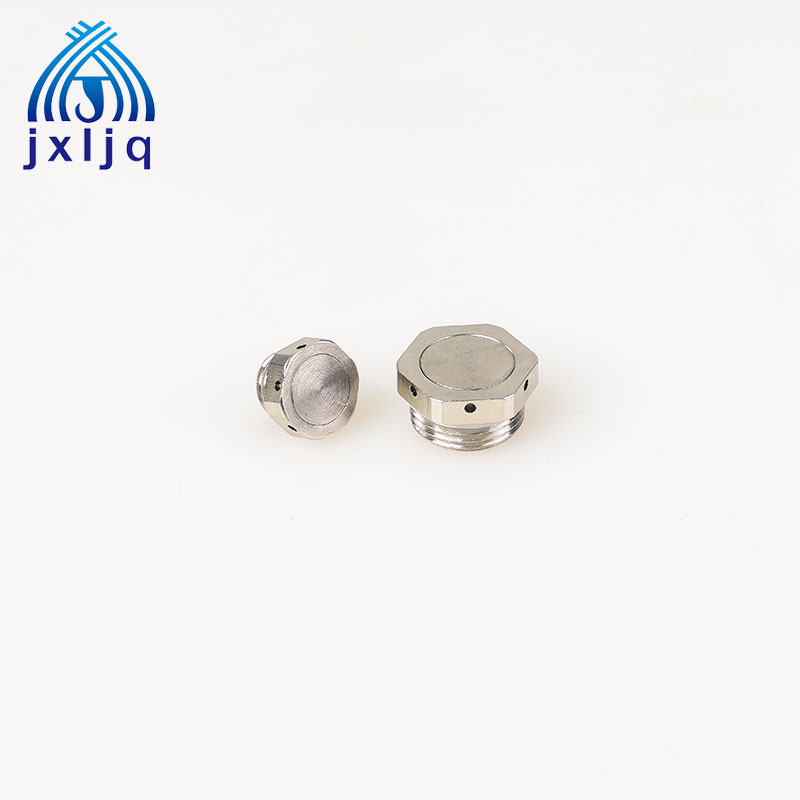

Brass Breathable Vent Plug
Material: Brass with nickel plated or Aluminum material.
Product Certification: CE certification,ROHS and UL.
Thread Size: Metric Thread
Working temperature: -40℃to 100℃, short time up to 150℃.
Material: Brass with nickel plated or Aluminum material.
Product Certification: CE certification,ROHS and UL.
Protection Degree: The Depth of Waterproof to 3-5 M, The O-ring up to IP68 Waterproof Level: Anti-Vibration and shock tested IEC-60077-1999,according with ROHS
Working temperature: -40℃to 120℃, short time up to 150℃.
Function:
1. Waterproof and dustproof;
2.Vent,protect the inside equipment operation normally and long in the serious environment
3.Heat dissipation,replace or assist in heat sink to lower inside temperature.
4.Prolong the product’s service life.
More options: Customization is acceptable.Welcome to inquire.
|
Brass Breathable Vent Plug - Metric Thread |
|||||||
|
Product Code |
Thread AG |
Air Permeability |
Thread O.D.(mm) |
Total Length (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
Packing (pcs) |
|
JX-M12-BVP |
M12*1.5 |
288ml/Min |
12 |
19 |
9 |
16 |
50 |
|
JX-M8-BVP |
M8*1.25 |
147ml/Min |
8 |
16 |
7 |
12 |
100 |
|
JX-M6-BVP |
M6*1 |
94ml/Min |
6 |
15 |
6 |
10 |
200 |
|
JX-M5-15-BVP |
M5*0.8 |
94ml/Min |
5 |
15 |
6 |
10 |
200 |
|
JX-M5-BVP |
M5*0.8 |
94ml/Min |
5 |
9.5 |
6 |
10 |
200 |
