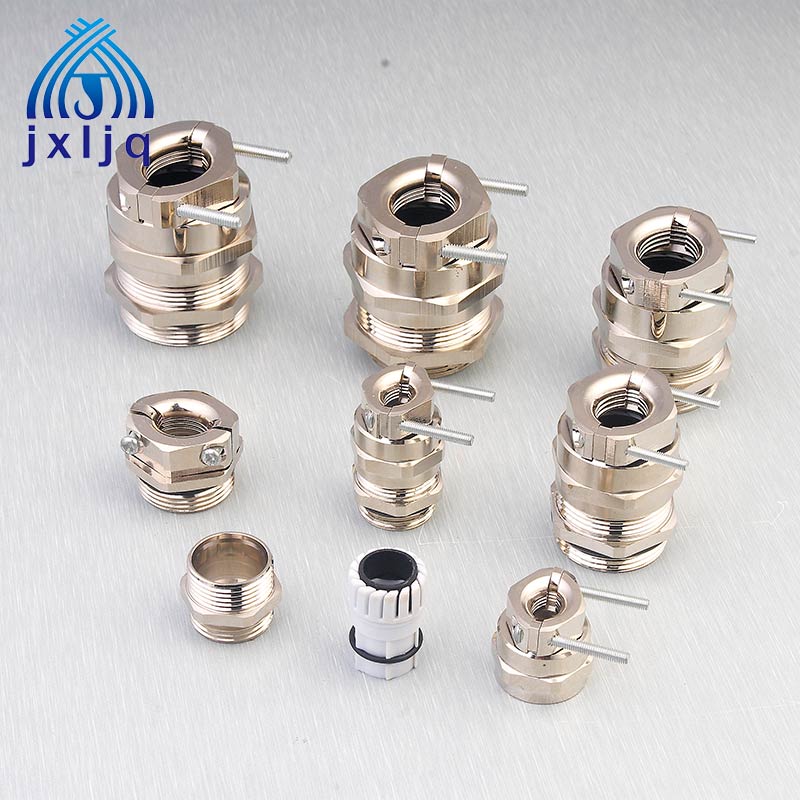

Brass Double-locked Cable Gland
Material: Brass with nickel plated
Clamping part: Nylon PA (UL File No: E240925). Refer to Ul94-V2
Sealing element: NBR
Thread Type: PG according to DIN40430
Test Standard: EN50262/EN62444
Product
Material: Brass with nickel plated
Clamping part: Nylon PA (UL File No: E240925). Refer to Ul94-V2
Sealing element: NBR
Thread Type: PG according to DIN40430
Test Standard: EN50262/EN62444
Protection Class: IP68
Working Temperature: -40 deg to 100 deg
Product Certification: CE certification and ISO9001.
Function: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.
Remark: If you need other material of sealing element such as silicone, EPDM and etc. Welcome to inquire!
The Drawing of Double-Locked Cable Gland:
|
Product Code |
Thread O.D |
Panel Mounting Hole (mm) |
Cable range (mm) |
Body Height (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-M12A-DL |
12 |
12-12.3 |
3-6.5 |
25 |
5 |
14 |
|
JX-M12B-DL |
12 |
12-12.3 |
4-8 |
27 |
6 |
17 |
|
JX-M14-DL |
14 |
14-14.3 |
4-8 |
27 |
6 |
17 |
|
JX-M16A-DL |
16 |
16-16.3 |
4-8 |
27 |
6 |
17 |
|
JX-M16B-DL |
16 |
16-16.3 |
5-10 |
29 |
6 |
20 |
|
JX-M18-DL |
18 |
18-18.3 |
5-10 |
29 |
6 |
20 |
|
JX-M20A-DL |
20 |
20-20.3 |
6-12 |
31 |
6.5 |
22 |
|
JX-M20B-DL |
20 |
20-20.3 |
10-14 |
31 |
6.5 |
24 |
|
JX-M22-DL |
22 |
22-22.3 |
10-14 |
31 |
6.5 |
24 |
|
JX-M24-DL |
24 |
24-24.3 |
10-14 |
31 |
6.5 |
24/27 |
|
JX-M25-DL |
25 |
25-25.3 |
13-18 |
37 |
7 |
30 |
|
JX-M27-DL |
27 |
27-27.3 |
13-18 |
37 |
7 |
30 |
|
JX-M28-DL |
28 |
28-28.3 |
13-18 |
37 |
7 |
30 |
|
JX-M30-DL |
30 |
30-30.3 |
13-18 |
37 |
8 |
30/32 |
|
JX-M32-DL |
32 |
32-32.3 |
18-25 |
42 |
8 |
40 |
|
JX-M33-DL |
33 |
33-33.3 |
18-25 |
42 |
8 |
40 |
|
JX-M36-DL |
36 |
36-36.3 |
18-25 |
42 |
8 |
40 |
|
JX-M37-DL |
37 |
37-37.3 |
18-25 |
42 |
8 |
40 |
|
JX-M40-DL |
40 |
40-40.3 |
22-32 |
48 |
8 |
50 |
|
JX-M42-DL |
42 |
42-42.3 |
22-32 |
48 |
8 |
50 |
|
JX-M47-DL |
47 |
47-47.3 |
22-32 |
48 |
8 |
50 |
|
JX-M48-DL |
48 |
48-48.3 |
22-32 |
48 |
8 |
50/52 |
|
JX-M50-DL |
50 |
50-50.3 |
32-38 |
50 |
9 |
57 |
|
JX-M54-DL |
54 |
54-54.3 |
32-38 |
50 |
9 |
57 |
|
JX-M56-DL |
56 |
56-56.3 |
32-38 |
50 |
9 |
57/59 |
|
JX-M60-DL |
60 |
60-60.3 |
37-44 |
51 |
10 |
64 |
|
JX-M63-DL |
63 |
63-63.3 |
37-44 |
51 |
10 |
64/68 |
|
JX-M64-DL |
64 |
64-64.3 |
37-44 |
51 |
10 |
64 |
|
|
|
|
|
|
|
|
|
JX-PG7-DL |
12.5 |
12.5-12.8 |
3-6.5 |
25 |
5 |
14 |
|
JX-PG9-DL |
15.2 |
15.2-15.5 |
4-8 |
27 |
6 |
17 |
|
JX-PG11-DL |
18.6 |
18.6-18.9 |
5-10 |
29 |
6 |
20 |
|
JX-PG13.5-DL |
20.4 |
20.4-20.7 |
6-12 |
31 |
6.5 |
22 |
|
JX-PG16-DL |
22.5 |
22.5-22.8 |
10-14 |
31 |
6.5 |
24 |
|
JX-PG21-DL |
28.3 |
28.3-28.6 |
13-18 |
37 |
7 |
30 |
|
JX-PG29-DL |
37 |
37-37.3 |
18-25 |
42 |
8 |
40 |
|
JX-PG36-DL |
47 |
47-47.3 |
22-32 |
48 |
8 |
50 |
|
JX-PG42-DL |
54 |
54-54.3 |
32-38 |
50 |
9 |
57 |
|
JX-PG48-DL |
59.3 |
59.3-59.6 |
37-44 |
51 |
10 |
64 |
