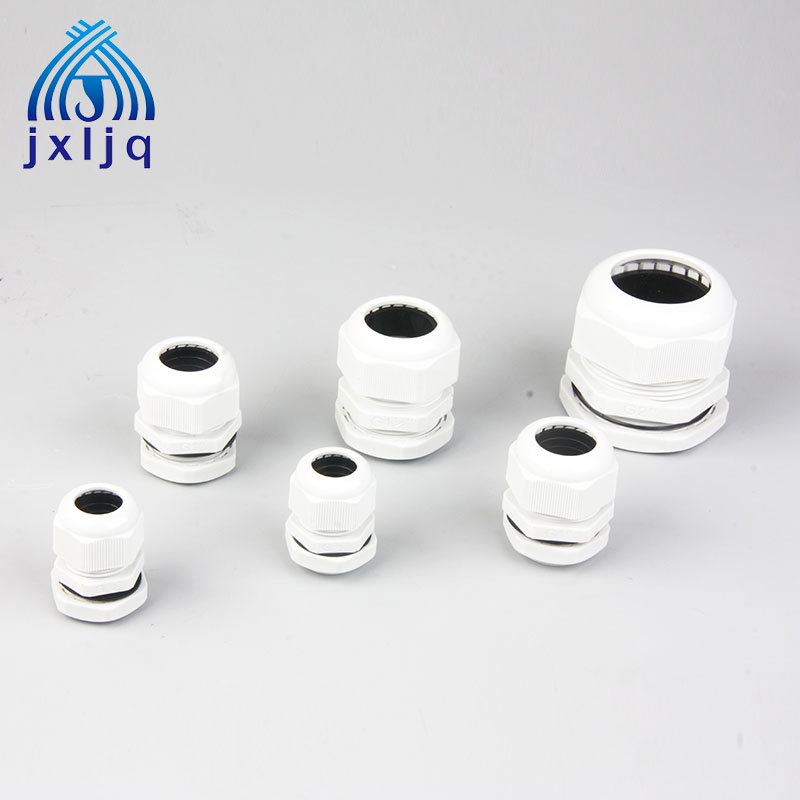

Nylon Cable Gland Divided Structure - PG Thread
Material: UL approved- Nylon PA66 for A.C.E.F Parts.
EPDM rubber is for B.D parts.
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Colors: Black(RAL9005), Gray(RAL7035)
Products
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005), Gray(RAL7035), other colors are available upon requests.
More options: Customization is accept. Welcome to inquire.
|
Divided Structure Nylon Cable Gland-- PG thread |
|||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. C1(mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-NLPG7A-DS |
PG7 |
3-5.5 |
12.5 |
8 |
17/19 |
|
JX-NLPG7B-DS |
4.5-7.8 |
12.5 |
8 |
17/19 |
|
|
JX-NLPG9A-DS |
PG9 |
3-5.5 |
15.2 |
8.2 |
22/19 |
|
JX-NLPG9B-DS |
4.5-7.8 |
15.2 |
8.2 |
22/19 |
|
|
JX-NLPG11A-DS |
PG11 |
4-7 |
18.6 |
10 |
24/22 |
|
JX-NLPG11B-DS |
6-10 |
18.6 |
10 |
24/22 |
|
|
JX-NLPG13.5A-DS |
PG13.5 |
5-8.8 |
20.4 |
10 |
27/24 |
|
JX-NLPG13.5B-DS |
7-12.5 |
20.4 |
10 |
27/24 |
|
|
JX-NLPG16A-DS |
PG16 |
6-11 |
22.5 |
10.8 |
30/27 |
|
JX-NLPG16B-DS |
9-14 |
22.5 |
10.8 |
30/27 |
|
|
JX-NLPG21A-DS |
PG21 |
10-16 |
28.3 |
12 |
36/33 |
|
JX-NLPG21B-DS |
13-18 |
28.3 |
12 |
36/33 |
|
|
JX-NLPG29A-DS |
PG29 |
15-22 |
37 |
12 |
46/41 |
|
JX-NLPG29B-DS |
18-25 |
37 |
12 |
46/41 |
|
|
JX-NLPG36A-DS |
PG36 |
20-26 |
47 |
14 |
57/52 |
|
JX-NLPG36B-DS |
24-31 |
47 |
14 |
57/52 |
|
|
JX-NLPG42A-DS |
PG42 |
25-33 |
54 |
15 |
64/62 |
|
JX-NLPG42B-DS |
31-41 |
54 |
15 |
64/62 |
|

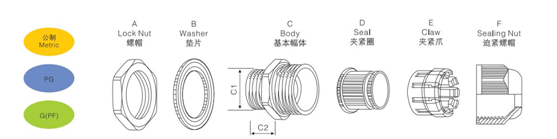

The Drawing of Divided Structure Nylon Cable Gland
