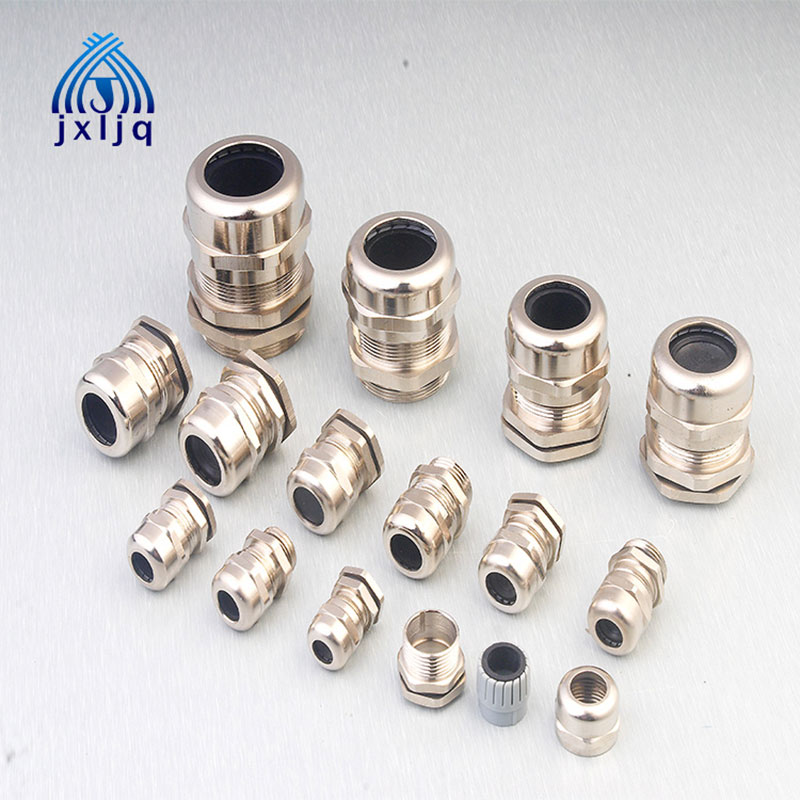

Brass Cable Gland GT Series M,PG Thread
Material:
Cap nut: Brass with nickel plated
Clamping insert : polyamide PA6 V2
Sealing Ring: TPV
Gland body: brass with nickel plated
Material:
Cap nut: Brass with nickel plated
Clamping insert : polyamide PA6 V2
Sealing Ring: TPV
Gland body: brass with nickel plated
Oring : NBR
Connection Thread: Metric (EN 60423)
Protection Class : IP68
Temperature Range: -40°C to 100°C for short term
Note: Customization is acceptable.
The Drawing of Brass Cable Gland:
|
Code |
Body Height H (mm) |
Thread Length GL (mm) |
Spanner Size C (mm) |
Cable Range (mm) |
|
JX-M12-GT |
20 |
6 |
16 |
3-7 |
|
JX-M16-GT |
24 |
7 |
20 |
4-10 |
|
JX-M20-GT |
27 |
9 |
24 |
6-13 |
|
JX-M25-GT |
29 |
8 |
30 |
9-17 |
|
JX-M32-GT |
33 |
9 |
36 |
11-21 |
|
JX-M40-GT |
41 |
9 |
45 |
19-28 |
|
JX-M50-GT |
45 |
9 |
55 |
26-35 |
|
JX-M63-GT |
48 |
14 |
68 |
34-45 |
|
|
||||
|
JX-PG7-GT |
19 |
5 |
14 |
3-6.5 |
|
JX-PG9-GT |
22 |
6 |
17 |
4-8 |
|
JX-PG11-GT |
25 |
6 |
20 |
5-10 |
|
JX-PG13.5-GT |
26 |
6.5 |
22 |
6-12 |
|
JX-PG16-GT |
27 |
6.5 |
24 |
10-14 |
|
JX-PG21-GT |
31 |
7 |
30 |
13-18 |
|
JX-PG29-GT |
38 |
8 |
40 |
18-25 |
|
JX-PG36-GT |
45 |
15 |
50 |
22-32 |
|
JX-PG42-GT |
45 |
15 |
57 |
30-38 |
|
JX-PG48-GT |
47 |
15 |
64 |
34-44 |
