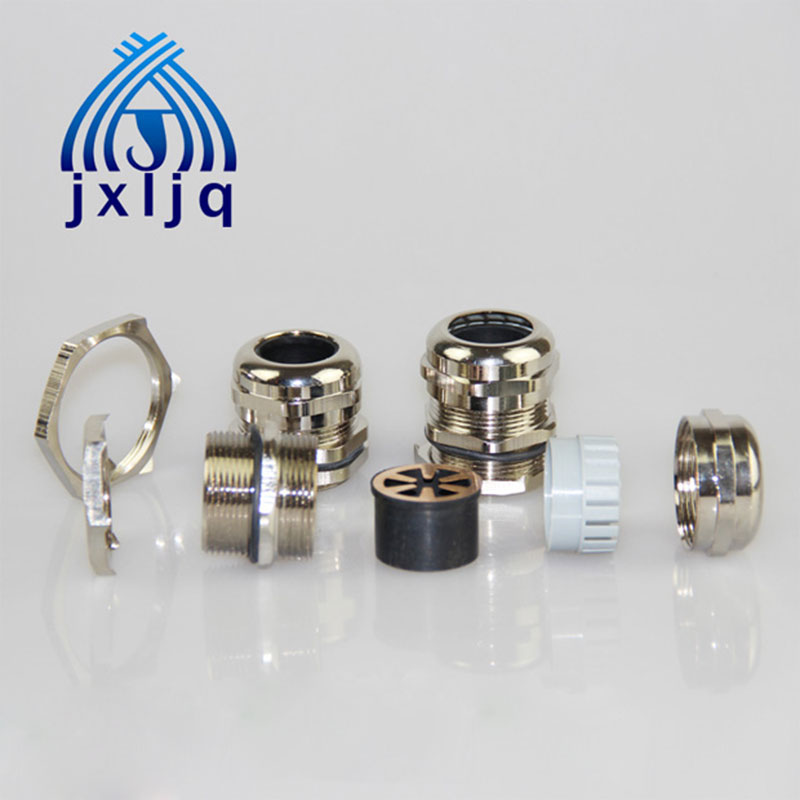

EMC Brass Cable Gland - D series Metric Thread

Material: nickel plated brass
Clamping parts : plastic (PA)
Seals and O-ring : nitrile rubber (NBR) .
Product Certification: CE, ROHS ,IP68 and ISO9001.
Customization is acceptable. Welcome to inquire.

online service

Tel:+86-577-61118056
Email:jx1@jxljq.net
Skype:jx1@jxljq.net
Mobile:+86-18867788668
PDF Download
Inquiry
The previous
No next


Material: The joint body parts are made of nickel plated brass, the clamping parts are made of plastic (PA) , and the seals and  O-ring are made of nitrile rubber (NBR) .

Product Certification: CE, ROHS ,IP68 and ISO9001.

Protection Degree: in the specific cable range, the using of the O-ring helps tighten head, so that to reach IP68-10 bar pressure.

Working temperature:

Static: -40℃to 100℃, short time up to 120℃.

Dynamic: -20℃to 80℃, short time up to 100℃

Thread length: The short  thread is suitable for holes in the  board or equipment with inner thread, while the long thread ia available for thick planted. Threads extension can be customized.

Features: This product is a kind of specially designed metal cable gland which is used as an end.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated. The brass materials cable glands with different sizes are widely applicable for outlet areas when anti-electromagnetic is needed. It is also waterproof with IP68 protection degree.

More options: Customization is acceptable. Welcome to inquire.


EMC Cable Gland ---D series, Metric thread

Product Code

Thread  AG

Cable range(mm)

Thread diameter(mm)

Board caliber(mm)

Thread length GL(mm)

Joint length(mm)

Wrench diameter (mm)

JX-D.M12-EMC

M12*1.5

6.5-3

12

12-12.2

7

19

14

JX-D.M14-EMC

M14*1.5

8-4

14

14-14.2

7

19

17

JX-D.M16-EMC

M16*1.5

8-4

16

16-16.2

8

20

18

JX-D.M18-EMC

M18*1.5

10-5

18

18-18.2

8

21

20

JX-D.M20-EMC

M20*1.5

12-6

20

20-20.2

8

22

22

JX-D.M22-EMC

M22*1.5

14-10

22

22-22.2

8

23

24

JX-D.M24-EMC

M24*1.5

14-10

24

24-24.2

9

25

24/27

JX-D.M25A-EMC

M25*1.5

14-10

25

25-25.2

9

25

24/27

JX-D.M25B-EMC

M25*1.5

18-13

25

25-25.2

9

27

30/27

JX-D.M27A-EMC

M27*1.5

18-13

27

27-27.2

9

27

30

JX-D.M27B-EMC

M27*2

18-13

27

27-27.2

9

27

30

JX-D.M28A-EMC

M28*1.5

18-13

28

28-28.2

9

27

30

JX-D.M28B-EMC

M28*2

18-13

28

28-28.2

9

27

30

JX-D.M30A-EMC

M30*1.5

18-13

30

30-30.2

9

29

30/32

JX-D.M30B-EMC

M30*2

18-13

30

30-30.2

9

29

30/32

JX-D.M32A-EMC

M32*1.5

22-15

32

32-32.2

10

29

35

JX-D.M32B-EMC

M32*2

22-15

32

32-32.2

10

29

35

JX-D.M33A-EMC

M33*1.5

22-15

33

33-33.2

10

29

35

JX-D.M33B-EMC

M33*2

22-15

33

33-33.2

10

29

35

JX-D.M36A-EMC

M36*1.5

25-18

36

36-36.2

10

31

40

JX-D.M36B-EMC

M36*2

25-18

36

36-36.2

10

31

40

JX-D.M37A-EMC

M37*1.5

25-18

37

37-37.2

10

31

40

JX-D.M37B-EMC

M37*2

25-18

37

37-37.2

10

31

40

JX-D.M40A-EMC

M40*1.5

25-18

40

40-40.2

11

31

40/45

JX-D.M40B-EMC

M40*2

25-18

40

40-40.2

11

31

40/45

JX-D.M40C-EMC

M40*1.5

30-22

40

40-40.2

11

35

45

JX-D.M40D-EMC

M40*2

30-22

40

40-40.2

11

35

45

JX-D.M42A-EMC

M42*1.5

30-22

42

42-42.2

11

35

45

JX-D.M42B-EMC

M42*2

30-22

42

42-42.2

11

35

45

JX-D.M47A-EMC

M47*1.5

33-25

47

47-47.2

11

37

50

JX-D.M47B-EMC

M47*2

33-25

47

47-47.2

11

37

50

JX-D.M48A-EMC

M48*1.5

33-25

48

48-48.2

11

37

50/52

JX-D.M48B-EMC

M48*2

33-25

48

48-48.2

11

37

50/52

JX-D.M50A-EMC

M50*1.5

38-32

50

50-50.2

12

37

50/55

JX-D.M50B-EMC

M50*2

38-32

50

50-50.2

12

37

50/55

JX-D.M54A-EMC

M54*1.5

38-32

54

54-54.2

12

38

57

JX-D.M54B-EMC

M54*2

38-32

54

54-54.2

12

38

57

JX-D.M56A-EMC

M56*1.5

38-32

56

56-56.2

12

38

57/59

JX-D.M56B-EMC

M56*2

38-32

56

56-56.2

12

38

57/59

JX-D.M60A-EMC

M60*1.5

44-37

60

60-60.2

13

38

64

JX-D.M60B-EMC

M60*2

44-37

60

60-60.2

13

38

64

JX-D.M63A-EMC

M63*1.5

44-37

63

63-63.2

13

38

64/68

JX-D.M63B-EMC

M63*2

44-37

63

63-63.2

13

38

64/68

JX-D.M64A-EMC

M64*1.5

44-37

64

64-64.2

13

38

64/68

JX-D.M64B-EMC

M64*2

44-37

64

64-64.2

13

38

64/68

JX-D.M72-EMC

M72*2

52-42

72

72-72.2

15

42

65/68

JX-D.M75-EMC

M75*2

52-42

75

75-75.2

15

42

78

JX-D.M80-EMC

M80*2

62-50

80

80-80.2

15

45

86/88

JX-D.M88-EMC

M88*2

70-60

88

88-88.2

15

45

98

JX-D.M100-EMC

M100*2

80-70

100

100-100.2

15

45

110


Draft Drawing of Gland:





The key words of this product:Brass Cable Gland all size EMC Cable Gland with different series brass cable gland with silicone insert
