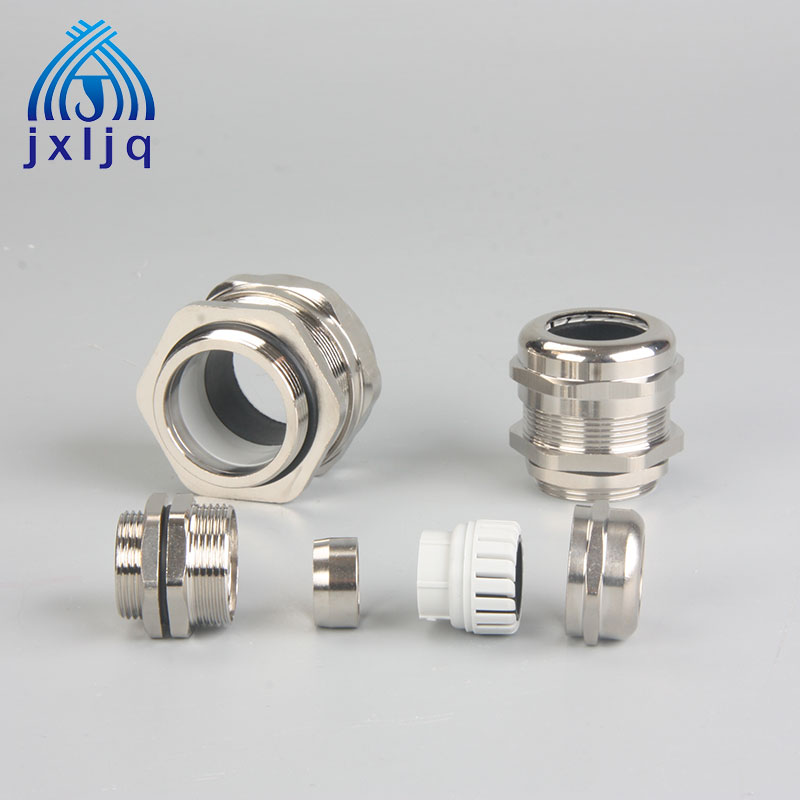

EMC Cable Gland - F series
Cap nut: Brass with nickel Plated
Gland Body: Brass with nickel plated
Fastener: Nylon/ Plastic
O-ring & Clamping part: NBR
(Free of halogen, phosphor and cadmium.)
Connection Thread: Metric
Material:
Cap nut: Brass with nickel Plated
Gland Body: Brass with nickel plated
Fastener: Nylon/ Plastic
O-ring & Clamping part: NBR
(Free of halogen, phosphor and cadmium.)
Certificate: CE, IP68, ISO9001, Rohs
Protection Class : IP68-10 BAR
Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG)
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.
Function: Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
More options: Customization is acceptable. Welcome to inquire when ordering.
|
EMC Cable Gland – F Series- Metric thread |
||||||
|
Product Code |
Thread AG |
Cable range(mm) |
Height (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
Diagonal Size (mm) |
|
JX-F.M20A-EMC |
M20*1.5
|
6-12 |
6 |
23.5 |
22 |
24.5 |
|
JX-F.M20B-EMC |
5-9 |
6 |
23.5 |
22 |
24.6 |
|
|
JX-F.M20C-EMC |
10-14 |
6.5 |
24 |
24 |
26.6 |
|
|
JX-F.M20D-EMC |
7-12 |
6.5 |
24 |
24 |
26.6 |
|
|
JX-F.M25A-EMC |
M25*1.5 |
13-18 |
7 |
25.5 |
30 |
34 |
|
JX-F.M25B-EMC |
9-16 |
7 |
25.5 |
30 |
34 |
|
|
JX-F.M32A-EMC |
M32*1.5 |
18-25 |
8 |
32 |
40 |
44.5 |
|
JX-F.M32B-EMC |
13-20 |
8 |
32 |
40 |
44.5 |
|
|
JX-F.M40A-EMC |
M40*1.5 |
22-32 |
8 |
37 |
50 |
55 |
|
JX-F.M40B-EMC |
20-26 |
8 |
37 |
50 |
55 |
|
|
JX-F.M50A-EMC |
M50*1.5 |
32-38 |
9 |
28 |
57 |
62 |
|
JX-F.M50B-EMC |
25-31 |
9 |
28 |
57 |
62 |
|
|
JX-F.M63A-EMC |
M63*1.5 |
37-44 |
10 |
23 |
65 |
72 |
|
JX-F.M63B-EMC |
29-35 |
10 |
38 |
65 |
72 |
|
