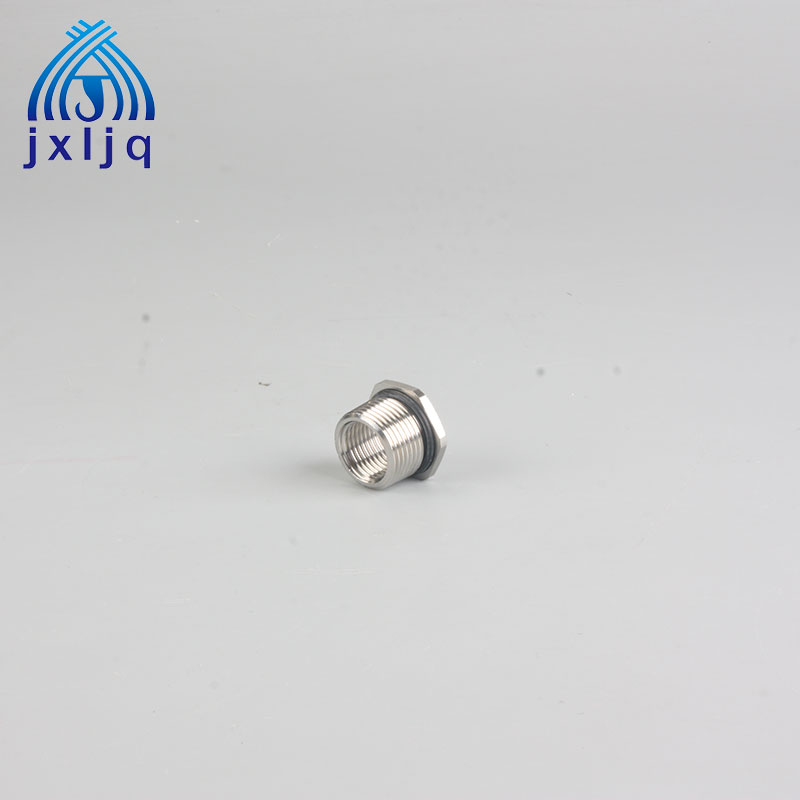

EX Stainless Steel Reducer
Material: Stainless Steel 304/316
Shape: hexagonal or round
Temperature: -40 Deg to 100 Deg, short time to 120 Deg
Certificate: CE, Ex d IIC Gb/Ex e II GB
Features: This product can transform different threads OD freely; Change larger Thread to smaller Thread.
Material: Stainless Steel 304/316
Shape: hexagonal or round
Temperature: -40 Deg to 100 Deg, short time to 120 Deg
Certificate: CE, Ex d IIC Gb/Ex e II GB
Features: This product can transform different threads OD freely; Change larger Thread to smaller Thread.
Function: A reducer is used if the dimensions of existing tapped Holes are too large for a given gland. It provides a means of connection between cable entry devices and equipment having dissimilar Threads.
Accessories: Locknut, Sealing Washer
Note: We can produce different thread lengths and the other sides of threads (not standard) as the requirement of customer.
|
Ex Stainless Steel Reducer- Metric, PG, NPT Thread |
|||||||
|
Circle Series |
Hexagon series |
Item |
Thread length (GL) mm |
Height (H)mm |
Hexagon size (D)mm |
||
|
Male thread (D1) |
|||||||
|
JX-M16/12A-SRE |
JX-M16/12B- SRE |
M16*1.5 |
M12*1.5 |
6 |
8.5 |
18 |
|
|
JX-M20/16A- SRE |
JX-M20/16B- SRE |
M20*1.5 |
M16*1.5 |
6.5 |
9 |
24 |
|
|
JX-M25/20A- SRE |
JX-M25/20B- SRE |
M25*1.5 |
M20*1.5 |
7.5 |
10 |
30 |
|
|
JX-M32/25A- SRE |
JX-M32/25B- SRE |
M32*1.5 |
M25*1.5 |
8 |
11.5 |
40 |
|
|
JX-M40/32A- SRE |
JX-M40/32B- SRE |
M40*1.5 |
M32*1.5 |
9 |
12.5 |
43 |
|
|
JX-M50/40A- SRE |
JX-M50/40B- SRE |
M50*1.5 |
M40*1.5 |
10 |
14 |
57 |
|
|
JX-M63/50A- SRE |
JX-M63/50B- SRE |
M63*1.5 |
M50*1.5 |
10 |
14 |
64 |
|
|
JX-PG9/PG7A- SRE |
JX-PG9/PG7B- SRE |
PG9 |
PG7 |
6 |
8.5 |
17 |
|
|
JX-PG11/PG9A- SRE |
JX-PG11/PG9B- SRE |
PG11 |
PG9 |
6.5 |
8.5 |
20 |
|
|
JX-PG13.5/PG11A- SRE |
JX-PG13.5/PG11B- SRE |
PG13.5 |
PG11 |
6.5 |
9 |
22 |
|
|
JX-PG16/PG13.5A- SRE |
JX-PG16/PG13.5B- SRE |
PG16 |
PG13.5 |
6.5 |
9.5 |
24 |
|
|
JX-PG21/PG16A- SRE |
JX-PG21/PG16B- SRE |
PG21 |
PG16 |
7.5 |
10 |
30 |
|
|
JX-PG29/PG21A- SRE |
JX-PG29/PG21B- SRE |
PG29 |
PG21 |
8 |
11.5 |
40 |
|
|
JX-PG36/PG29A- SRE |
JX-PG36/PG29B- SRE |
PG36 |
PG29 |
9 |
12.5 |
50 |
|
|
JX-PG42/PG36A- SRE |
JX-PG42/PG36B- SRE |
PG42 |
PG36 |
10 |
14 |
57 |
|
|
JX-PG48/PG42A- SRE |
JX-PG48/PG42B- SRE |
PG48 |
PG42 |
10 |
14 |
64 |
|
|
JX-NPT1/2"-NPT3/8"A- SRE |
JX-NPT1/2"-NPT3/8"B- SRE |
NPT1/2" |
NPT3/8" |
6.5 |
9 |
24 |
|
|
JX-NPT3/4"-NPT1/2"A- SRE |
JX-NPT3/4"-NPT1/2"B- SRE |
NPT3/4" |
NPT1/2" |
7.5 |
10 |
30 |
|
|
JX-NPT1"-NPT3/4"A- SRE |
JX-NPT1"-NPT3/4"B- SRE |
NPT1" |
NPT3/4" |
8 |
11.5 |
40 |
|
|
JX-NPT1-1/4"-NPT1"A- SRE |
JX-NPT1-1/4"-NPT1"B- SRE |
NPT1-1/4" |
NPT1" |
9 |
12.5 |
50 |
|
The Drawing of EX Stainless Steel Reducer
