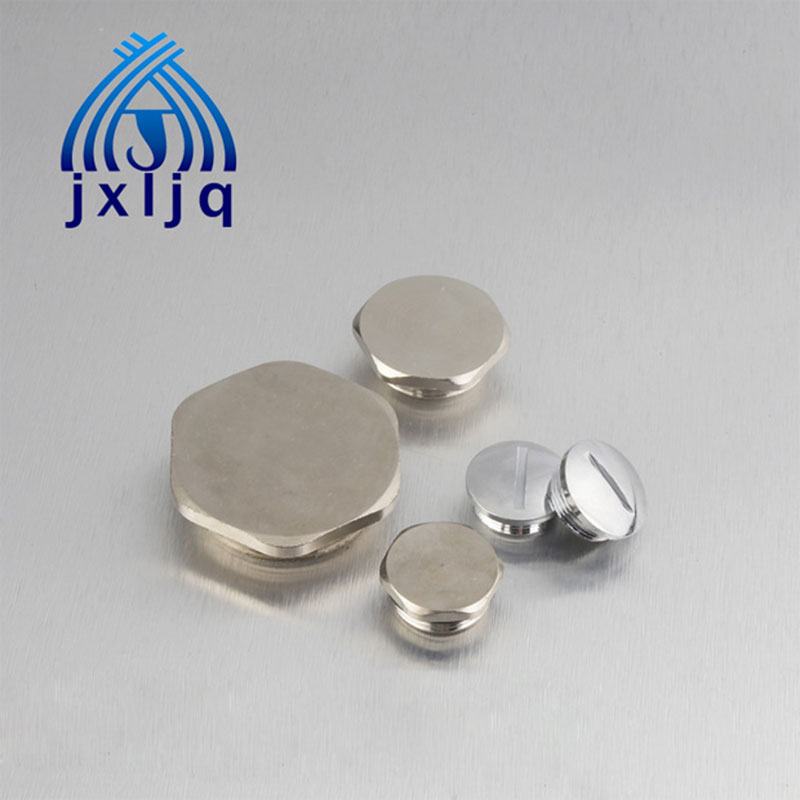

Hexagonal Brass Screw Cap
Material: Nickel-plated brass
Shape: Hexagonal
Features: In order to close the reserved holes or extra holes, to keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant
Protection: IP65
Certificate: CE,IP68
Material: Nickel-plated brass
Shape: Hexagonal
Features: In order to close the reserved holes or extra holes, make the product beautiful,it can keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant
Protection: IP65
Certificate: CE,IP68
Note: Customization is available. Welcome to inquire.
|
Hexagonal Brass screw cap |
||||
|
Product Code |
Thread specification AG |
Thread length GL (mm) |
H(mm) |
D(mm) |
|
JX-PG7-HSC |
PG7 |
5 |
8 |
14 |
|
JX-PG9-HSC |
PG9 |
6 |
9 |
17 |
|
JX-PG11-HSC |
PG11 |
6 |
9 |
20 |
|
JX-PG13.5-HSC |
PG13.5 |
6.5 |
9.5 |
22 |
|
JX-PG16-HSC |
PG16 |
6.5 |
9.5 |
24 |
|
JX-PG21-HSC |
PG21 |
7 |
11 |
30 |
|
JX-PG29-HSC |
PG29 |
8 |
12 |
39 |
|
JX-PG36-HSC |
PG36 |
9 |
15 |
50 |
|
JX-PG42-HSC |
PG42 |
10 |
16 |
57 |
|
JX-PG48-HSC |
PG48 |
10 |
16 |
64 |
|
JX-M12-HSC |
M12 |
5 |
8 |
14 |
|
JX-M16-HSC |
M16 |
6 |
9 |
17 |
|
JX-M18-HSC |
M18 |
6 |
9 |
20 |
|
JX-M20-HSC |
M20 |
6.5 |
9.5 |
22 |
|
JX-M22-HSC |
M22 |
6.5 |
9.5 |
24 |
|
JX-M24-HSC |
M24 |
6.5 |
10 |
27 |
|
JX-M25-HSC |
M25 |
6.5 |
10 |
27 |
|
JX-M30-HSC |
M30 |
6.5 |
10 |
33 |
|
JX-M32-HSC |
M32 |
7 |
11 |
35 |
|
JX-M36-HSC |
M36 |
8 |
12 |
39 |
|
JX-M40-HSC |
M40 |
8 |
13 |
43 |
|
JX-M47-HSC |
M47 |
9 |
15 |
50 |
|
JX-M50-HSC |
M50 |
9 |
15 |
55 |
|
JX-M54-HSC |
M54 |
10 |
16 |
57 |
|
JX-M60-HSC |
M60 |
10 |
16 |
64 |
|
JX-M63-HSC |
M63 |
10 |
16 |
66 |
|
JX-M72-HSC |
M72 |
10 |
16 |
75 |
The Drawing of Hexagonal Brass Screw Cap:
