Longer Thread Brass Cable Gland-Metric Thread
Material: Brass with nickel plated
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification,TUV and ISO9001.
Patent: National Utility Model Patent No is ZL201020530888.7
Products

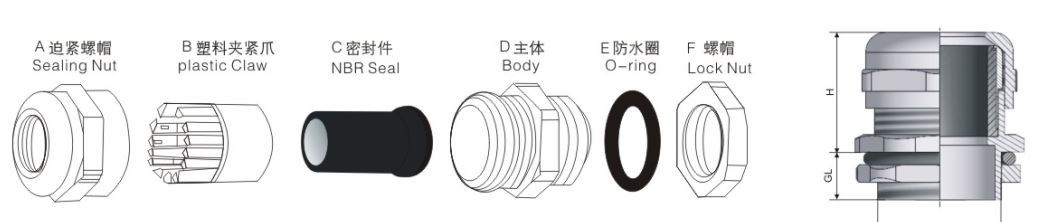

The Structure Diagram of Longer Thread Cable Gland:
Thread Size: Metric Thread
Material: Brass with nickel plated
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification,TUV and ISO9001.
Patent: National Utility Model Patent No is ZL201020530888.7
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Thread Length: Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.Longer thread type can be produced as your requests.
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
|
Longer Thread Cable Gland-- Metric thread |
|||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-M8L |
M8*1.0 |
2-5 |
8 |
8 |
12 |
|
JX-M10L |
M10*1.0 |
3-6.5 |
10 |
10 |
14 |
|
JX-M12L |
M12*1.5 |
3-6.5 |
12 |
10 |
14 |
|
JX-M14L |
M14*1.5 |
4-8 |
14 |
12 |
17 |
|
JX-M16L |
M16*1.5 |
4-8 |
16 |
12 |
18 |
|
JX-M18L |
M18*1.5 |
5-10 |
18 |
12 |
20 |
|
JX-M20L |
M20*1.5 |
6-12 |
20 |
12 |
22 |
|
JX-M22L |
M22*1.5 |
10-14 |
22 |
12 |
24 |
|
JX-M24L |
M24*1.5 |
10-14 |
24 |
12 |
24/27 |
|
JX-M25-14L |
M25*1.5 |
10-14 |
25 |
12 |
24/27 |
|
JX-M25-18L |
M25*1.5 |
13-18 |
25 |
12 |
30/27 |
|
JX-M27L |
M27*1.5 |
13-18 |
27 |
12 |
30 |
|
JX-M28L |
M28*1.5 |
13-18 |
28 |
12 |
30 |
|
JX-M30L |
M30*1.5 |
13-18 |
30 |
14 |
30/32 |
|
JX-M32L |
M32*1.5 |
15-22 |
32 |
14 |
35 |
|
JX-M33L |
M33*1.5 |
15-22 |
33 |
14 |
35 |
|
JX-M36L |
M36*1.5 |
18-25 |
36 |
14 |
40 |
|
JX-M37L |
M37*1.5 |
18-25 |
37 |
14 |
40 |
|
JX-M40-25L |
M40*1.5 |
18-25 |
40 |
15 |
40/45 |
|
JX-M40-30L |
M40*1.5 |
22-30 |
40 |
15 |
45 |
|
JX-M42L |
M42*1.5 |
22-30 |
42 |
15 |
45 |
|
JX-M47L |
M47*1.5 |
25-33 |
47 |
15 |
50 |
|
JX-M48L |
M48*1.5 |
25-33 |
48 |
15 |
50/52 |
|
JX-M50L |
M50*1.5 |
32-38 |
50 |
15 |
57/55 |
|
JX-M54L |
M54*1.5 |
32-38 |
54 |
15 |
57 |
|
JX-M60L |
M60*1.5 |
37-44 |
60 |
16 |
64 |
|
JX-M63L |
M63*1.5 |
37-44 |
63 |
16 |
64/68 |
|
JX-M64L |
M64*2.0 |
37-44 |
64 |
16 |
|
|
JX-M72L |
M72*2.0 |
42-52 |
72 |
18 |
78 |
|
JX-M75L |
M75*2.0 |
42-52 |
75 |
18 |
78/80 |
|
JX-M80L |
M80*2.0 |
50-62 |
80 |
20 |
86/88 |
|
JX-M88L |
M88*2.0 |
60-70 |
88 |
20 |
98 |
|
JX-M100L |
M100*2.0 |
70-80 |
100 |
22 |
110 |
