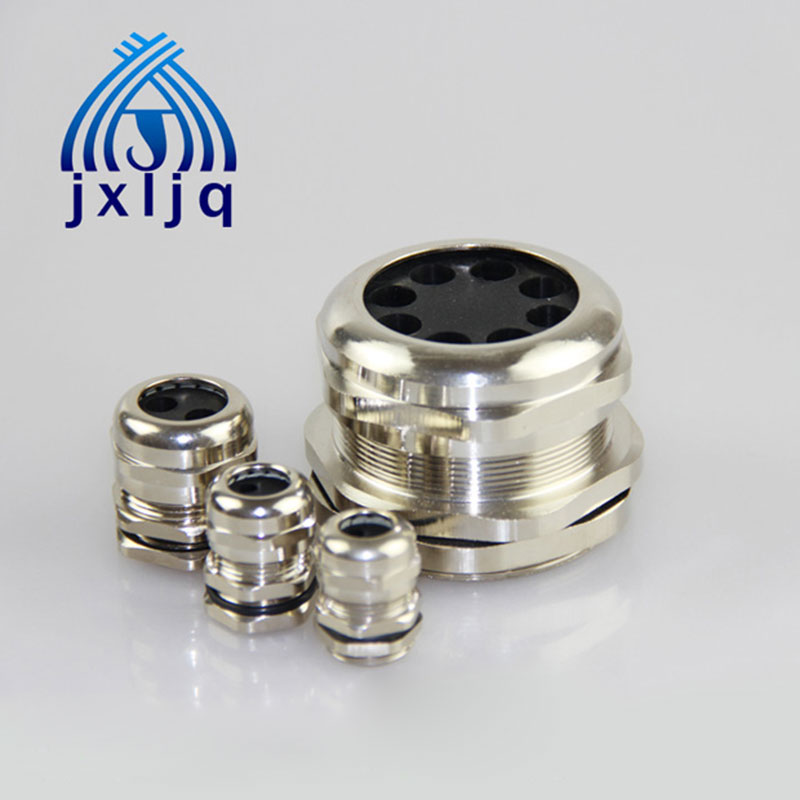

Multiple Cable Gland 2-8 Holes- Metric,PG,GThread
Material: nickel plated brass
Clamping parts: plastic (PA)
Seals and O-ring: nitrile rubber (NBR)
Product Certification: CE, ROHS, IP68 and ISO9001
For more holes, please specify the relevant parameters.
Products
Thread Size: Metric Thread, PG, G thread
Material: The joint parts are made of nickel plated brass, the clamping parts are made of plastic (PA) , and the seals and O-ring are made of nitrile rubber (NBR) .
Product Certification: CE, ROHS, IP68 and ISO9001
Protection degree : in the specific cable range, the using of the O-ring helps tighten head, so that reach to IP68-10 bar pressure.
Colors: Metallic
Working temperature:
Static: -40℃to 100℃, short time up to 120℃.
Dynamic: -20℃to 80℃, short time up to 100℃
Characteristic: The cable gland is a product of large scope, high tensile strength, waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant.
Variety of outlet holes: There are 2-8 holes designed for outlet cable, so that each cable to get the best water-proof insulation, and not intertwined.
Note: For more holes, please specify the relevant parameters, such as: model specification, the cable diameter, number of holes and so on.
|
Mutiple Metal Cable Gland – 2-8 Holes |
|||||||||
|
Product Code |
Thread specification AG |
Flat |
M2 |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
|
JX-M12/* |
M12*1.5 |
/ |
3-1.2 |
2.6-1.2 |
2.3-1 |
/ |
/ |
/ |
/ |
|
JX-M16/* |
M16*1.5 |
/ |
4-1.6 |
2.6-1.2 |
2.3-1 |
2.5-1.0 |
2.0-1.0 |
/ |
/ |
|
JX-M18/* |
M18*1.5 |
6X10 |
3.5-2 |
4-1.6 |
3-1.2 |
2.6-1.5 |
2.2-1 |
/ |
/ |
|
JX-M20/* |
M20*1.5 |
5X11.5 |
5.3-1.5 |
5-2 |
4.2-1.7 |
3-1.2 |
3-1.2 |
3-1.2 |
3-1.2 |
|
JX-M22/* |
M22*1.5 |
6X14 |
6-2.5 |
3.5-1.5 |
4.5-2 |
/ |
/ |
/ |
/ |
|
JX-M25/* |
M25*1.5 |
6X14 |
8.7-4 |
8-4 |
5-2 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
|
JX-M27/* |
M27*1.5 |
7X18 |
8.7-4.5 |
5-2 |
7-3.5 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
|
JX-M32/* |
M32*1.5 |
8X22 |
10-5 |
10-5 |
9-4.5 |
8.0-4.0 |
7-3.5 |
6-3 |
/ |
|
JX-PG7/* |
PG7 |
/ |
3-1.2 |
2.6-1.2 |
2.3-1 |
/ |
/ |
/ |
/ |
|
JX-PG9/* |
PG9 |
/ |
4-1.6 |
2.6-1.2 |
2.3-1 |
2.5-1.0 |
2-1 |
/ |
/ |
|
JX-PG11/* |
PG11 |
6X10 |
3.5-2 |
4-1.6 |
3-1.2 |
2.6-1.5 |
2.2-1 |
/ |
/ |
|
JX-PG13.5/* |
PG13.5 |
5X11.5 |
5.3-1.5 |
3.5-1.5 |
4.2-1.7 |
4.2-1.7 |
/ |
/ |
/ |
|
JX-PG16/* |
PG16 |
6X14 |
6-2.5 |
3.5-1.5 |
4.5-2 |
/ |
/ |
/ |
/ |
|
JX-PG21/* |
PG21 |
7X18 |
8.7-4.5 |
5-2 |
7-3.5 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
/ |
|
JX-PG29/* |
PG29 |
8X22 |
10-5 |
10-5 |
9-4.5 |
8.0-4.0 |
7-3.5 |
6-3 |
/ |
|
JX-G1/2/* |
G1/2 |
5X11.5 |
5.3-1.5 |
5-2 |
4.2-1.7 |
3-1.2 |
3-1.2 |
3-1.2 |
3-1.2 |
|
JX-G3/4/* |
G3/4 |
7X18 |
8.7-4.5 |
5-2 |
7-3.5 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
3.5-1.5 |
|
JX-G1/* |
G1 |
8X22 |
10-5 |
10-5 |
9-4.5 |
8.0-4.0 |
7-3.5 |
6-3 |
/ |
