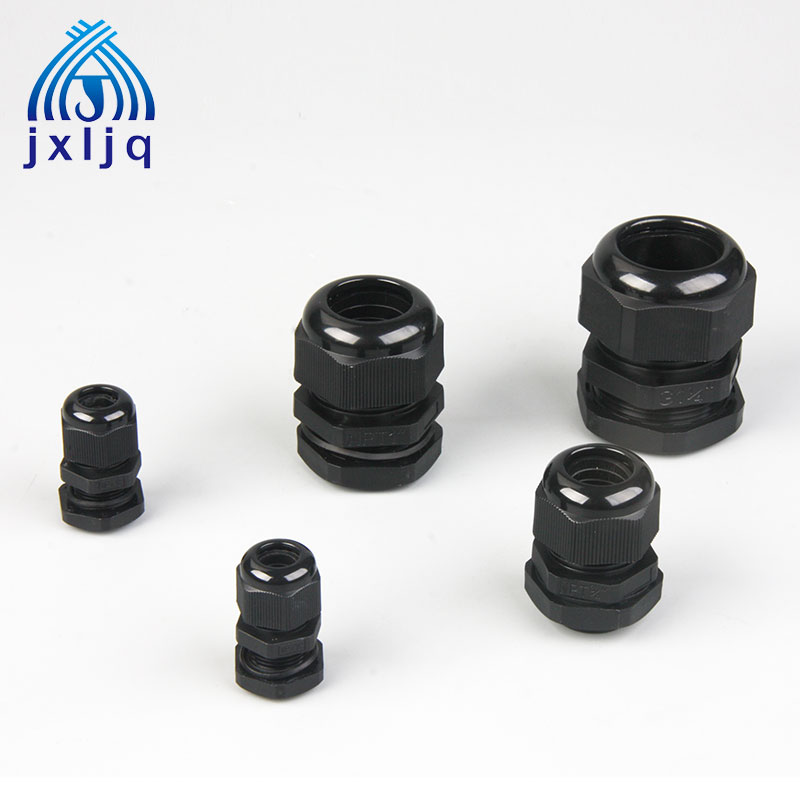

Nylon Cable Gland Standard PG Thread
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: IP68 (Rotate the part and use O ring)
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Function: 1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
More options: Customization is acceptable.Welcome to inquire.
|
Nylon Cable Gland--PG thread |
|||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D AG (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-NLPG7A |
PG7 |
3-6.5 |
12.5 |
9 |
18/16 |
|
JX-NLPG7B |
PG7 |
2-5 |
12.5 |
9 |
18/16 |
|
JX-NLPG9A |
PG9 |
4-8 |
15.2 |
9 |
22/19 |
|
JX-NLPG9B |
PG9 |
2-6 |
15.2 |
9 |
22/19 |
|
JX-NLPG11A |
PG11 |
5-10 |
18.6 |
9 |
24/22 |
|
JX-NLPG11B |
PG11 |
3-7 |
18.6 |
9 |
24/22 |
|
JX-NLPG13.5A |
PG13.5 |
6-12 |
20.4 |
9 |
27/24 |
|
JX-NLPG13.5B |
PG13.5 |
5-9 |
20.4 |
9 |
27/24 |
|
JX-NLPG16A |
PG16 |
10-14 |
22.5 |
10 |
30/27 |
|
JX-NLPG16B |
PG16 |
7-12 |
22.5 |
10 |
30/27 |
|
JX-NLPG19A |
PG19 |
12-16 | 24 |
10 |
30/28 |
|
JX-NLPG19B |
PG19 |
10-13 | 24 |
10 |
30/28 |
|
JX-NLPG21A |
PG21 |
13-18 |
28.3 |
12 |
36/33 |
|
JX-NLPG21B |
PG21 |
9-16 |
28.3 |
12 |
36/33 |
|
JX-NLPG25A |
PG25 |
16-21 |
30 |
12 |
37/35 |
|
JX-NLPG25B |
PG25 |
13-18 |
30 |
12 |
37/35 |
|
JX-NLPG29A |
PG29 |
18-25 |
37 |
12 |
45/42 |
|
JX-NLPG29B |
PG29 |
13-20 |
37 |
12 |
45/42 |
|
JX-NLPG36A |
PG36 |
22-32 |
47 |
17 |
58/52 |
|
JX-NLPG36B |
PG36 |
20-26 |
47 |
17 |
58/52 |
|
JX-NLPG42A |
PG42 |
32-38 |
54 |
19 |
65/60 |
|
JX-NLPG42B |
PG42 |
25-31 |
54 |
19 |
65/60 |
|
JX-NLPG48A |
PG48 |
37-44 |
59.3 |
19 |
70/69 |
|
JX-NLPG48B |
PG48 |
25-36 |
59.3 |
19 |
70/69 |
|
JX-NLPG63A |
PG63 |
42-50 |
71 |
27 |
83/75 |
|
JX-NLPG63B |
PG63 |
32-40 |
71 |
27 |
83/75 |
The Drawing of Nylon Cable Gland:
