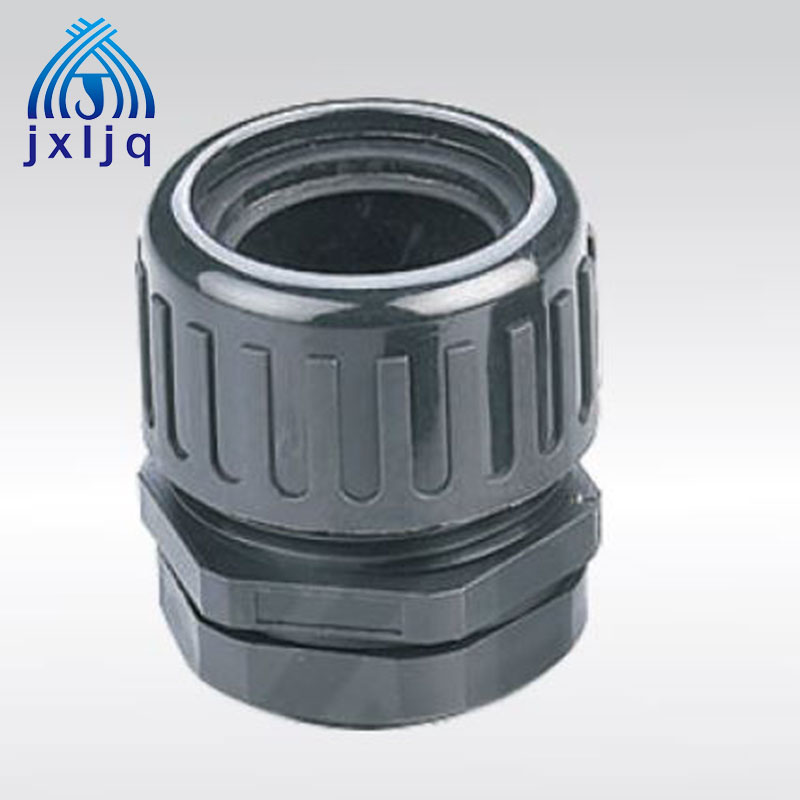

Nylon Conduit Fitting
Material: UL approved Nylon PA66 for A.C.F parts
EPDM Rubber for B.D parts
Protection Degree: IP68-10 BAR
Special size and type, please contact us without hesitation.
Material: UL approved Nylon PA66 ( Flammability UL 94V-2) for A.C.F parts; (accept to make flammability UL V-0).
EPDM Rubber for B.D parts; (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection Degree: IP68-10 BAR
Working temperature: -40°C to 100°C in static state, or instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic state, or instantaneous heat resistance up to 100°C.
Thread: Metric, PG and G Thread
Features: The Powerful Watertight Fitting build the best tightening power by a very high and active compression force to resist the ingress of high pressure water jet for any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubing.
Note: Special size and type, please contact us without hesitation.

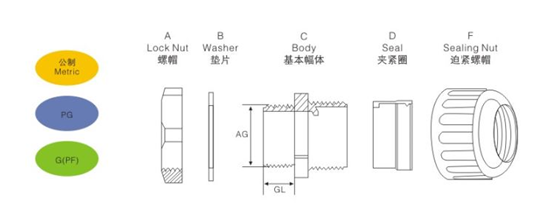

The drawing:
|
Nylon Conduit Fitting – Metric, PG, G(PF) Thread |
||||
|
Item No. |
Accommodated Pipes |
Thread |
Thread O.D. C1 (mm) |
Thread Length C2 (mm) |
|
JX-M12-NC10 |
AD 10 |
M12*1.5 |
12 |
9 |
|
JX-M16-NC13 |
AD 13 |
M16*1.5 |
16 |
10 |
|
JX-M16-NC13L |
M16*1.5 |
16 |
15 |
|
|
JX-M16-NC15.8 |
AD 15.8 |
M16*1.5 |
16 |
15 |
|
JX-M20-NC15.8 |
M20*1.5 |
20 |
10 |
|
|
JX-M20-NC15.8L |
20 |
15 |
||
|
JX-M22-NC15.8 |
|
M22*1.5 |
22 |
15 |
|
JX-M25-NC15.8 |
M25*1.5 |
25 |
15 |
|
|
JX-M16-NC18.5 |
AD 18.5 |
M16*1.5 |
16 |
15 |
|
JX-M20-NC18.5 |
M20*1.5 |
20 |
10 |
|
|
JX-M20-NC18.5L |
M20*1.5 |
20 |
15 |
|
|
JX-M22-NC18.5 |
M22*1.5 |
22 |
15 |
|
|
JX-M16-NC21.2 |
AD 21.2 |
M16*1.5 |
16 |
15 |
|
JX-M20-NC21.2 |
M20*1.5 |
20 |
15 |
|
|
JX-M25-NC21.2 |
M25*1.5 |
25 |
10 |
|
|
JX-M25-NC21.2L |
M25*1.5 |
25 |
15 |
|
|
JX-M25-NC25 |
AD 25 |
M25*1.5 |
25 |
15 |
|
JX-M25-NC28.5 |
AD 28.5 |
M25*1.5 |
25 |
15 |
|
JX-M32-NC34.5 |
AD 34.5 |
M32*1.5 |
32 |
15 |
|
JX-M40-NC42.5 |
AD 42.5 |
M40*1.5 |
40 |
15 |
|
JX-M50-NC42.5 |
M50*1.5 |
50 |
15 |
|
|
JX-M50-NC48.5 |
AD 48.5 |
M50*1.5 |
50 |
15 |
|
JX-M50-NC54.5 |
AD 54.5 |
M50*1.5 |
50 |
25 |
|
JX-M63-NC54.5 |
M63*1.5 |
63 |
25 |
|
|
|
||||
|
JX-PG7-NC10 |
AD 10 |
PG7 |
12.5 |
9 |
|
JX-PG9-NC10 |
PG9 |
15.2 |
10 |
|
|
JX-PG9-NC13 |
AD 13 |
PG9 |
15.2 |
10 |
|
JX-PG11-NC13 |
PG11 |
18.6 |
10 |
|
|
JX-PG11-NC15.8 |
AD 15.8 |
PG11 |
18.6 |
10 |
|
JX-PG13.5-NC15.8 |
PG13.5 |
20.4 |
10 |
|
|
JX-PG16-NC15.8 |
PG16 |
22.5 |
10.8 |
|
|
JX-PG13.5-NC18.5 |
AD 18.5 |
PG13.5 |
20.4 |
10 |
|
JX-PG16-NC18.5 |
PG16 |
22.5 |
10.8 |
|
|
JX-PG16-NC21.2 |
AD 21.2 |
PG16 |
22.5 |
10.8 |
|
JX-PG21-NC21.2 |
PG21.2 |
28.3 |
13 |
|
|
JX-PG21-NC25 |
AD 25.0 |
PG21 |
28.3 |
13 |
|
JX-PG21-NC28.5 |
AD 28.5 |
PG21 |
28.3 |
13 |
|
JX-PG29-NC34.5 |
AD 34.5 |
PG29 |
37 |
13 |
|
JX-PG36-NC42.5 |
AD 42.5 |
PG36 |
47 |
15 |
|
JX-PG42-NC42.5 |
PG42 |
54 |
16 |
|
|
JX-PG42-NC48.0 |
AD 48.0 |
PG42 |
54 |
16 |
|
JX-PG48-NC54.5 |
AD 54.5 |
PG48 |
59.3 |
26 |
|
|
||||
|
JX-PF1/4-NC10 |
AD 10 |
G(PF)1/4’’ |
13.1 |
9 |
|
JX-PF3/8-NC13 |
AD 13 |
G(PF)3/8’’ |
16.6 |
15 |
|
JX-PF1/2-NC15.8 |
AD 15.8 |
G(PF)1/2’’ |
20.9 |
15 |
|
JX-PF1/2-NC18.5 |
AD 18.5 |
G(PF)1/2’’ |
20.9 |
15 |
|
JX-PF1/2-NC21.2 |
AD 21.2 |
G(PF)1/2’’ |
20.9 |
15 |
|
JX-PF3/4-NC21.2 |
G(PF)3/4’’ |
26.4 |
15 |
|
|
JX-PF3/4-NC28.5 |
AD 28.5 |
G(PF)3/4’’ |
26.4 |
15 |
|
JX-PF1-NC34.5 |
AD 34.5 |
G(PF)1’’ |
33.2 |
15 |
|
JX-PF1 1/4-NC42.5 |
AD 42.5 |
G(PF)1 1/4’’ |
41.9 |
15 |
|
JX-PF1 1/2-NC54.5 |
AD 54.5 |
G(PF)1 1/2’’ |
48 |
15 |
|
JX-PF2-NC54.5 |
G(PF)2’’ |
60 |
26 |
|
