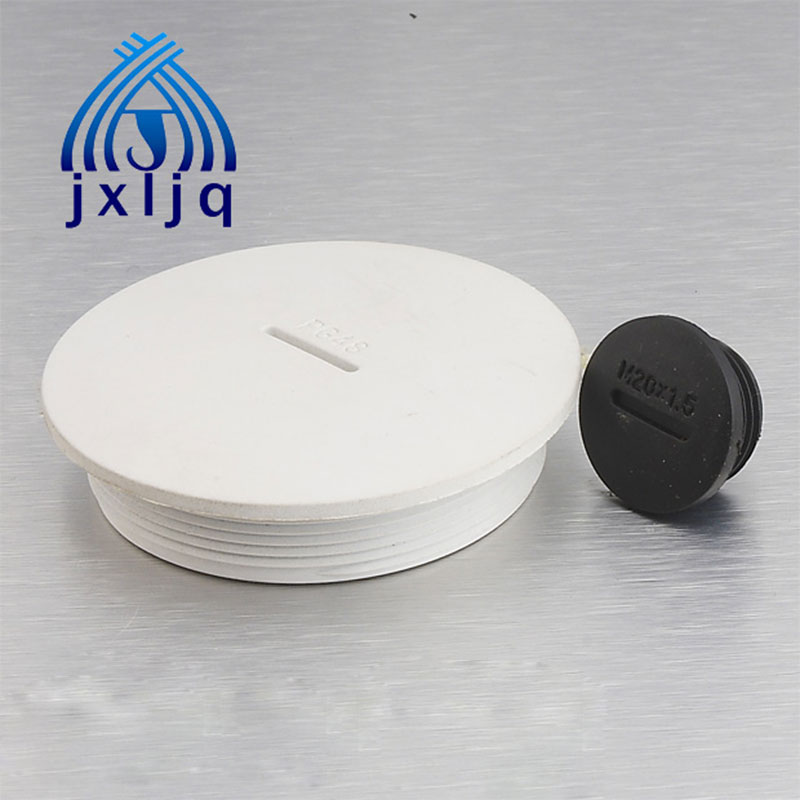

Nylon Screw Cap
Material: Adopting nylon PA66 certificated by UL.
Weather Strip: Nitrile Butadience Rubber (NBR), Weathering resistance Rubber (EPDM)
Thread Size: Metric, PG Thread
Product Certification: CE certification and ISO9001.
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: IP68 (Rptate the part and use O ring)
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
More options: Customization is acceptable. Welcome to inquire.
|
Nylon Screw Cap- Metric,PG Thread |
||||
|
Model |
Thread O.D. AG(mm) |
Thread length GL(mm) |
Main Body Height (mm) |
Cover Dimension D (mm) |
|
JX-M12-NSC |
12 |
8.5 |
12.5 |
15 |
|
JX-M16-NSC |
16 |
8.5 |
13 |
19 |
|
JX-M18-NSC |
18 |
9 |
13 |
22 |
|
JX-M20-NSC |
20 |
9 |
13 |
25 |
|
JX-M22-NSC |
22 |
10.5 |
15 |
27 |
|
JX-M25-NSC |
25 |
10.5 |
15.5 |
30 |
|
JX-M27-NSC |
27 |
10.5 |
15.5 |
33 |
|
JX-M32-NSC |
32 |
10.5 |
16 |
38 |
|
JX-M40-NSC |
40 |
11.5 |
16 |
46 |
|
JX-M50-NSC |
50 |
13.5 |
18 |
56 |
|
JX-M63-NSC |
63 |
14 |
19 |
68 |
|
JX-PG7-NSC |
12.5 |
8.5 |
12.5 |
15 |
|
JX-PG9-NSC |
15.2 |
8.5 |
13 |
19 |
|
JX-PG11-NSC |
18.6 |
9 |
13 |
22 |
|
JX-PG13.5-NSC |
20.4 |
9 |
13 |
25 |
|
JX-PG16-NSC |
22.5 |
10.5 |
15 |
27 |
|
JX-PG21-NSC |
28.3 |
10.5 |
15.5 |
33 |
|
JX-PG29-NSC |
37 |
11.5 |
16 |
44 |
|
JX-PG36-NSC |
47 |
13.5 |
18 |
55 |
|
JX-PG42-NSC |
54 |
13.5 |
18.5 |
62 |
|
JX-PG48-NSC |
59.3 |
14.5 |
19.5 |
68 |

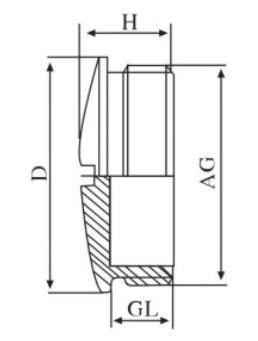

The Drawing of Nylon Screw Cap
