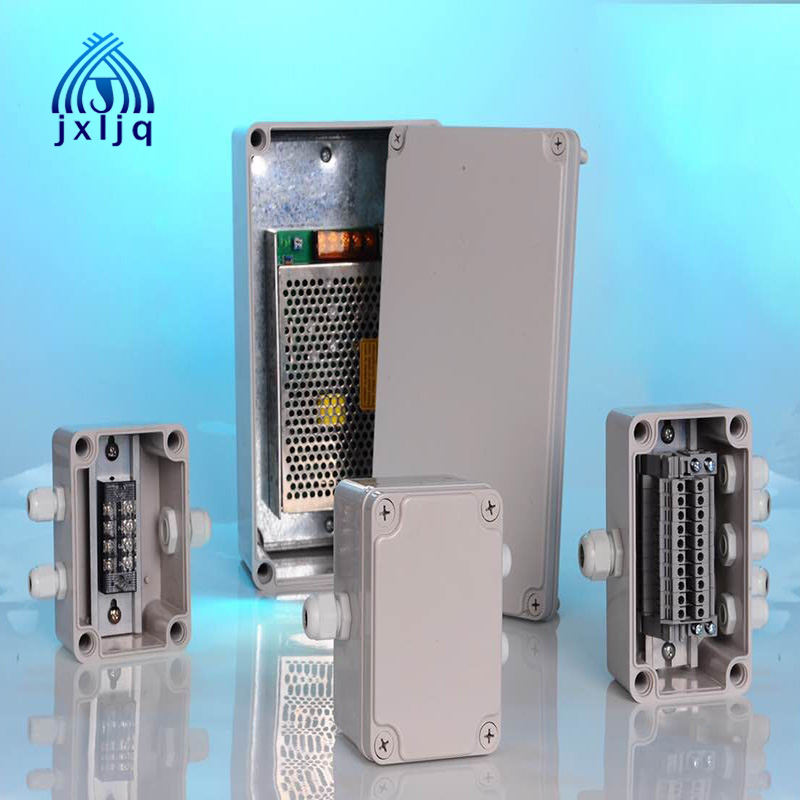

Plastic Jucntion Box
Material: ABS, PC or ABS + PC with flame retardant;
Protection Level: IP65
Operating Temperature: -20°C to 90°C
Color: can be changed as your requirements
Material: ABS, PC or ABS + PC with flame retardant;
Protection Level: IP65
Operating Temperature: -20°C to 90°C
Color: can be changed as your requirements
Features: Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass; higher intensity and more durable;
Better waterproof and anti-corrosion performance; protect your instruments even under adverse environment;
Note: Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing and etc.
|
Code |
Dimension:L*W*H (mm) |
Weight (pcs/kg) |
Pcs/box |
Dimension: L*W*H (mm) |
Gross Weight |
|
JX-090605 |
95*65*55 |
0.12 |
160 |
41*34*45 |
18.4 |
|
JX-110807 |
110*80*70 |
0.16 |
90 |
41*34*45 |
15.1 |
|
JX-110808 |
110*80*85 |
0.19 |
75 |
41*34*45 |
14.5 |
|
JX-130807 |
130*80*70 |
0.18 |
140 |
52*42*53 |
26.4 |
|
JX-130808 |
130*80*85 |
0.21 |
120 |
52*42*53 |
25.7 |
|
JX-101007 |
100*100*75 |
0.17 |
140 |
52*42*53 |
25.4 |
|
JX-101009 |
100*100*90 |
0.21 |
112 |
73*41*41 |
23.7 |
|
JX-1800807 |
180*80*70 |
0.24 |
100 |
73*41*41 |
24.4 |
|
JX-250807 |
250*80*70 |
0.33 |
70 |
52*42*53 |
21.3 |
|
JX-250808 |
250*80*85 |
0.34 |
60 |
52*42*53 |
20.9 |
|
JX-121207 |
125*125*75 |
0.24 |
72 |
51*38*47 |
18.2 |
|
JX-121209 |
125*125*90 |
0.28 |
60 |
51*38*47 |
17.5 |
|
JX-171207 |
175*125*75 |
0.32 |
60 |
73*41*41 |
19.7 |
|
JX-171210 |
175*125*100 |
0.38 |
48 |
73*41*41 |
19.1 |
|
JX-171409 |
170*140*95 |
0.39 |
45 |
52*42*53 |
18.5 |
|
JX-171710 |
175*175*100 |
0.48 |
36 |
52*42*53 |
18 |
|
JX-201510 |
200*150*100 |
0.44 |
40 |
62*41*51 |
19.6 |
|
JX-252009 |
200*200*95 |
0.59 |
30 |
62*41*51 |
18.6 |
|
JX-251510 |
250*150*100 |
0.57 |
32 |
62*41*51 |
19 |
|
JX-281913 |
280*190*130 |
0.93 |
16 |
57*39*55 |
16.1 |
