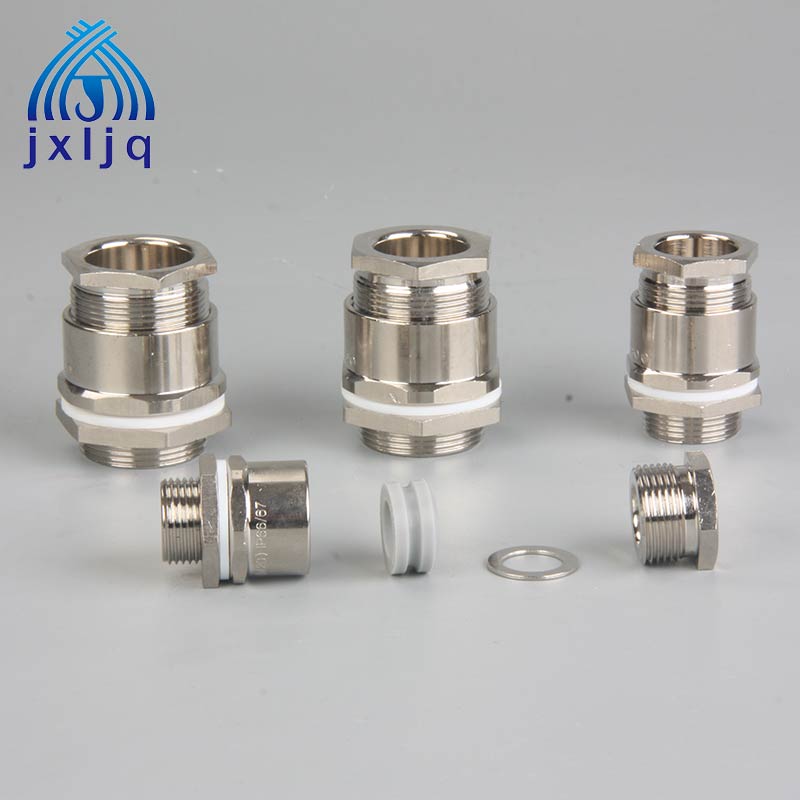

Single Compression Cable Gland (A2F E Type)
Material: SU304 for Body, brass with nickel plated
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C
Features: High-end design, practical, increase flood control external meter seal.
Material: SU304 for Body, brass with nickel plated
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C
Features: High-end design, practical, increase flood control external meter seal.
Ex Degree: Exd
Thread Options: Metric, G, PG, NPT
Application: For use of non-armored and braided cable in Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,
Can be used for explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.
|
Code |
Entry Thread |
Cable Range (mm) |
Thread Length GL (mm) |
Hexagon Size (H) |
Length (L) |
||
|
Metric |
NPT |
Metric |
NPT |
||||
|
JX-A2F-16A |
M16/M20 |
1/2’’ |
3-7.5 |
15 |
15 |
H24*26 |
31 |
|
JX-A2F-16B |
M16/M20 |
1/2’’ |
6.1-10 |
15 |
15 |
H24*26 |
31 |
|
JX-A2F-20A |
M20 |
1/2’’,3/4’’ |
10.1-13 |
15 |
15,16 |
H27*29 |
33 |
|
JX-A2F-20B |
M20 |
1/2’’,3/4’’ |
13.1-15 |
15 |
15,16 |
H27*29 |
33 |
|
JX-A2F-25A |
M25 |
3/4’’ ,1’’ |
14-17.5 |
15 |
16,18 |
H32*34 |
34 |
|
JX-A2F-25B |
M25 |
3/4’’ ,1’’ |
16.1-19.5 |
15 |
16,18 |
H32*34 |
34 |
|
JX-A2F-32A |
M32 |
1’’,1-1/4’’ |
18.1-22 |
15 |
18,19 |
H39*41.5 |
38 |
|
JX-A2F-32B |
M32 |
1’’,1-1/4’’ |
21-26 |
15 |
18,19 |
H39*41.5 |
38 |
|
JX-A2F-40A |
M40 |
1-1/4’’,1-1/2’’ |
24-28 |
15 |
19,21 |
H48*51 |
40 |
|
JX-A2F-40B |
M40 |
1-1/4’’,1-1/2’’ |
27-32 |
15 |
19,21 |
H48*51 |
40 |
|
JX-A2F-50A |
M50 |
1-1/2’’,2’’ |
32.1-34 |
15 |
21,24 |
H58*62 |
42 |
|
JX-A2F-50B |
M50 |
1-1/2’’,2’’ |
34.1-40 |
15 |
21,24 |
H58*62 |
42 |
|
JX-A2F-63A |
M63 |
2’’-2-1/2’’ |
38-44 |
15 |
24,27 |
H73*78 |
46 |
|
JX-A2F-63B |
M63 |
2’’-2-1/2’’ |
43-50 |
15 |
24,27 |
H73*78 |
46 |
|
JX-A2F-63C |
M63 |
2’’-2-1/2’’ |
49-54 |
15 |
24,27 |
H73*78 |
46 |
|
JX-A2F-75A |
M75 |
2-1/2’’,3’’ |
52-56 |
15 |
27,30 |
H85*90 |
52 |
|
JX-A2F-75B |
M75 |
2-1/2’’,3’’ |
55-60 |
15 |
27,30 |
H85*90 |
52 |
|
JX-A2F-75C |
M75 |
2-1/2’’,3’’ |
59-62 |
15 |
27,30 |
H85*90 |
52 |
|
JX-A2F-75D |
M75 |
2-1/2’’,3’’ |
62.1-66 |
15 |
27,30 |
H85*90 |
52 |
|
JX-A2F-90A |
M90 |
3’’,3-1/2’’ |
63-70 |
20 |
30,32 |
H100*106 |
60 |
|
JX-A2F-90B |
M90 |
3’’,3-1/2’’ |
68-76 |
20 |
30,32 |
H100*106 |
60 |
|
JX-A2F-100A |
M100 |
3-1/2’’,4’’ |
76.1-81 |
20 |
32 |
H112*120 |
69 |
|
JX-A2F-100B |
M100 |
3-1/2’’,4’’ |
81.1-85 |
20 |
32 |
H112*120 |
69 |
