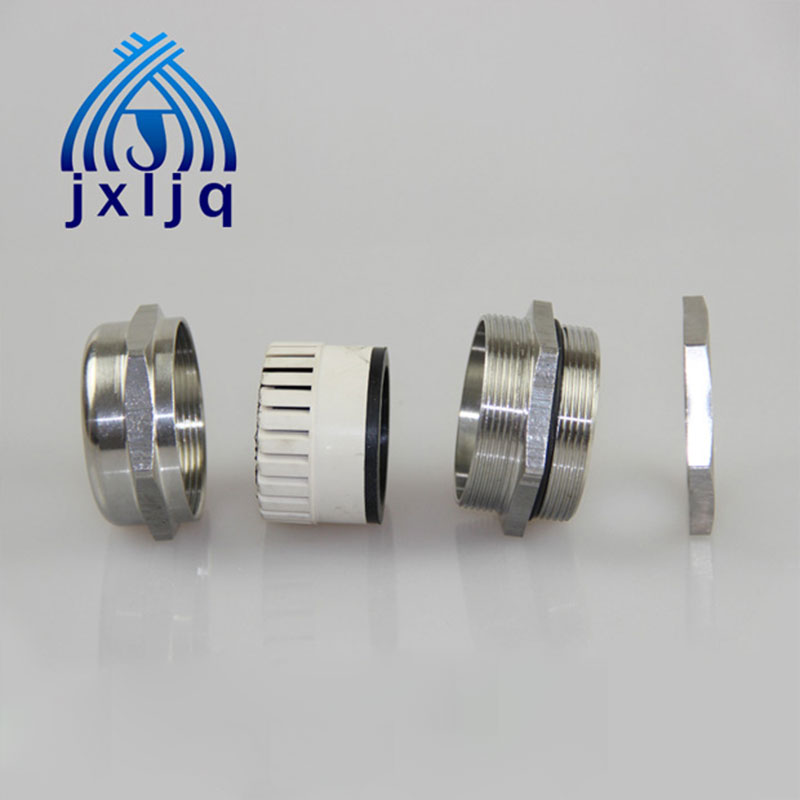

Stainless Steel Cable Gland - Metric Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Customization is acceptable.Welcome to inquire.
Thread Size: Metric Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
|
Nylon/Plastic Cable Gland-- Metric thread |
|||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. (mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-M8-SS |
M8*1.0 |
2-5.5 |
8 |
5 |
12 |
|
JX-M10-SS |
M10*1.0 |
3-6.5 |
10 |
7 |
14 |
|
JX-M12-SS |
M12*1.5 |
3-6.5 |
12 |
7 |
14 |
|
JX-M14-SS |
M14*1.5 |
4-8 |
14 |
7 |
17 |
|
JX-M16-SS |
M16*1.5 |
4-8 |
16 |
8 |
18 |
|
JX-M18-SS |
M18*1.5 |
5-10 |
18 |
8 |
20 |
|
JX-M20-SS |
M20*1.5 |
6-12 |
20 |
8 |
22 |
|
JX-M22-SS |
M22*1.5 |
10-14 |
22 |
8 |
24 |
|
JX-M24-SS |
M24*1.5 |
10-14 |
24 |
9 |
24/27 |
|
JX-M25A-SS |
M25*1.5 |
10-14 |
25 |
9 |
24/27 |
|
JX-M25B-SS |
M25*1.5 |
8-16 |
25 |
9 |
27 |
|
JX-M25C-SS |
M25*1.5 |
13-18 |
25 |
9 |
30/27 |
|
JX-M27A-SS |
M27*1.5 |
13-18 |
27 |
9 |
30 |
|
JX-M27B-SS |
M27*2.0 |
13-18 |
27 |
9 |
30 |
|
JX-M28A-SS |
M28*1.5 |
13-18 |
28 |
9 |
30 |
|
JX-M28B-SS |
M28*2.0 |
13-18 |
28 |
9 |
30 |
|
JX-M30A-SS |
M30*1.5 |
13-18 |
30 |
9 |
30/32 |
|
JX-M30B-SS |
M30*2.0 |
13-18 |
30 |
9 |
30/32 |
|
JX-M32A-SS |
M32*1.5 |
15-22 |
32 |
10 |
35 |
|
JX-M32B-SS |
M32*1.5 |
16-20 |
32 |
10 |
35 |
|
JX-M32C-SS |
M32*2.0 |
15-22 |
32 |
10 |
35 |
|
JX-M33A-SS |
M33*1.5 |
15-22 |
33 |
10 |
35 |
|
JX-M33B-SS |
M33*2.0 |
15-22 |
33 |
10 |
35 |
|
JX-M36A-SS |
M36*1.5 |
18-25 |
36 |
10 |
40 |
|
JX-M36B-SS |
M36*2.0 |
18-25 |
36 |
10 |
40 |
|
JX-M37A-SS |
M37*1.5 |
18-25 |
37 |
10 |
40 |
|
JX-M37B-SS |
M37*2.0 |
18-25 |
37 |
10 |
40 |
|
JX-M40A-SS |
M40*1.5 |
18-25 |
40 |
11 |
40/45 |
|
JX-M40B-SS |
M40*2.0 |
18-25 |
40 |
11 |
40/45 |
|
JX-M40C-SS |
M40*1.5 |
22-30 |
40 |
11 |
45 |
|
JX-M40D-SS |
M40*2.0 |
22-30 |
40 |
11 |
45 |
|
JX-M42A-SS |
M42*1.5 |
22-30 |
42 |
11 |
45 |
|
JX-M42B-SS |
M42*2.0 |
22-30 |
42 |
11 |
45 |
|
JX-M47A-SS |
M47*1.5 |
25-33 |
47 |
11 |
50 |
|
JX-M47B-SS |
M47*2.0 |
25-33 |
47 |
11 |
50 |
|
JX-M48A-SS |
M48*1.5 |
25-33 |
48 |
11 |
50/52 |
|
JX-M48B-SS |
M48*2.0 |
25-33 |
48 |
11 |
50/52 |
|
JX-M50A-SS |
M50*1.5 |
32-38 |
50 |
12 |
50/55 |
|
JX-M50B-SS |
M50*2.0 |
32-38 |
50 |
12 |
50/55 |
|
JX-M54A-SS |
M54*1.5 |
32-38 |
54 |
12 |
57 |
|
JX-M54B-SS |
M54*2.0 |
32-38 |
54 |
12 |
57 |
|
JX-M56A-SS |
M56*1.5 |
32-38 |
56 |
12 |
57/59 |
|
JX-M56B-SS |
M56*2.0 |
32-38 |
56 |
12 |
57/59 |
|
JX-M60A-SS |
M60*1.5 |
37-44 |
60 |
13 |
64 |
|
JX-M60B-SS |
M60*2.0 |
37-44 |
60 |
13 |
64 |
|
JX-M63A-SS |
M63*1.5 |
37-44 |
63 |
13 |
64/68 |
|
JX-M63B-SS |
M63*2.0 |
37-44 |
63 |
13 |
64/68 |
|
JX-M64A-SS |
M64*1.5 |
37-44 |
64 |
13 |
64/68 |
|
JX-M64B-SS |
M64*2.0 |
37-44 |
64 |
13 |
64/68 |
|
JX-M72-SS |
M72*2.0 |
42-52 |
72 |
15 |
78 |
|
JX-M75-SS |
M75*2.0 |
42-52 |
75 |
15 |
78 |
|
JX-M80-SS |
M80*2.0 |
50-62 |
80 |
15 |
86/88 |
|
JX-M88-SS |
M88*2.0 |
60-70 |
88 |
15 |
98 |
|
JX-M100-SS |
M100*2.0 |
70-80 |
100 |
15 |
110 |

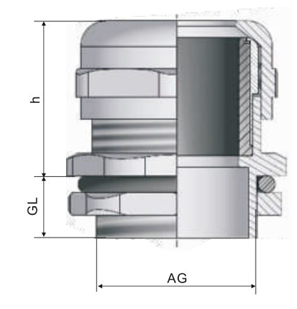

The Drawing of Stainless Steel Gland
