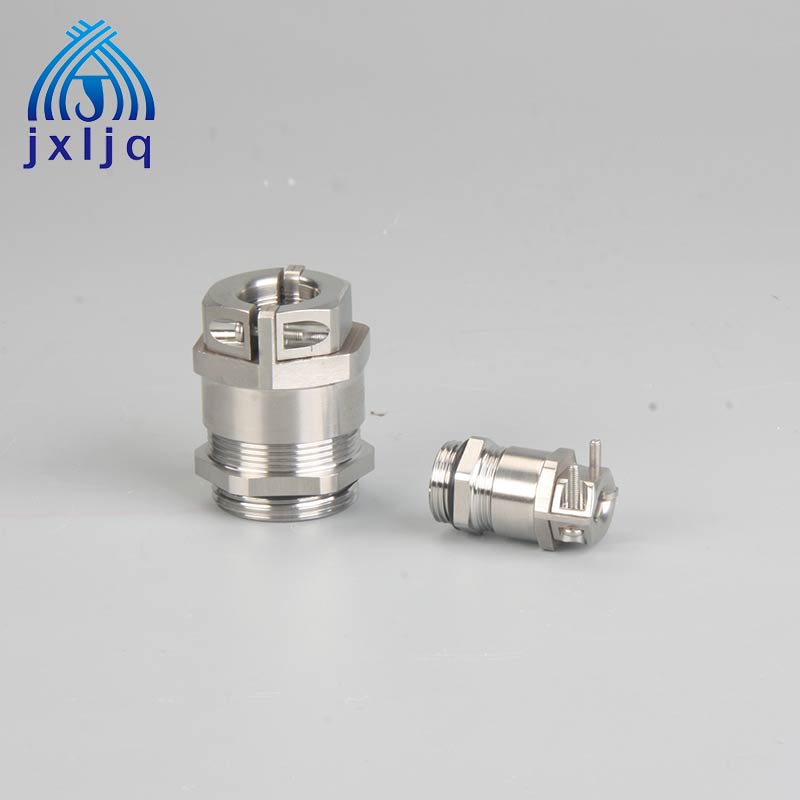

Stainless Steel Double-locked Cable Gland
Material: Body-SU 304
Clamping part: Ployamide
Sealing element: modified rubber
Thread Type: Metric
Protection Class: IP68
Product
Material: Body-SU 304
Clamping part: Ployamide
Sealing element: modified rubber
Thread Type: Metric
Protection Class: IP68
Working Temperature: -40 deg to 100 deg, short time to 120 deg
Product Certification: CE certification and ISO9001.
Function: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.
Remark: If you need other material of sealing element such as silicone, EPDM and etc. Welcome to inquire!
The Drawing of Double-Locked Cable Gland:
|
Product Code |
Thread Dimension |
Thread AG (mm) |
Cable range (mm) |
Thread length GL(mm) |
Body Height (mm) |
Spanner Size (mm) |
Std.pkg (pcs) |
|
JX-M12-DLS |
M12*1.5 |
12 |
3-6.5 |
6 |
26 |
14 |
50 |
|
JX-M16A- DLS |
M16*1.5 |
16 |
3-6.5 |
7 |
26 |
14/18 |
50 |
|
JX-M16B-DLS |
M16*1.5 |
16 |
4-8 |
7 |
28 |
17/18 |
50 |
|
JX-M16C-DLS |
M16*1.5 |
16 |
5-10 |
7 |
30 |
20 |
25 |
|
JX-M18- DLS |
M18*1.5 |
18 |
5-10 |
7 |
30 |
20 |
25 |
|
JX-M20A- DLS |
M20*1.5 |
20 |
5-10 |
7 |
30 |
20/22 |
25 |
|
JX-M20B- DLS |
M20*1.5 |
20 |
6-12 |
7 |
30.5 |
22 |
25 |
|
JX-M20C- DLS |
M20*1.5 |
20 |
8-14 |
7 |
30.5 |
24 |
25 |
|
JX-M24A- DLS |
M24*1.5 |
24 |
6-12 |
7 |
30.5 |
22/27 |
25 |
|
JX-M24B- DLS |
M24*1.5 |
24 |
8-14 |
7 |
30.5 |
24/27 |
25 |
|
JX-M25A- DLS |
M25*1.5 |
25 |
8-14 |
7 |
30.5 |
24/28 |
25 |
|
JX-M25B- DLS |
M25*1.5 |
25 |
10-16 |
7 |
30.5 |
28 |
25 |
|
JX-M25C- DLS |
M25*1.5 |
25 |
13-18 |
7 |
34.5 |
30 |
25 |
|
JX-M27A- DLS |
M27*2.0 |
27 |
10-16 |
8 |
36 |
30 |
25 |
|
JX-M27B- DLS |
M27*2.0 |
27 |
13-18 |
8 |
34.5 |
30 |
25 |
|
JX-M30A- DLS |
M30*2.0 |
30 |
10-16 |
8 |
35 |
30/34 |
25 |
|
JX-M30B- DLS |
M30*2.0 |
30 |
13-18 |
8 |
36 |
30/34 |
25 |
|
JX-M32A- DLS |
M32*1.5 |
32 |
13-18 |
8 |
36 |
30/34 |
20 |
|
JX-M32B- DLS |
M32*1.5 |
32 |
15-22 |
8 |
36 |
36 |
20 |
|
JX-M32C- DLS |
M32*1.5 |
32 |
18-25 |
8 |
38 |
40 |
20 |
|
JX-M36A- DLS |
M36*2.0 |
36 |
15-22 |
8 |
43 |
36/40 |
20 |
|
JX-M36B- DLS |
M36*2.0 |
36 |
18-25 |
8 |
43 |
40 |
20 |
|
JX-M40A- DLS |
M40*1.5 |
40 |
18-25 |
9 |
38 |
40/45 |
10 |
|
JX-M40B- DLS |
M40*1.5 |
40 |
21-30 |
9 |
43 |
45 |
10 |
|
JX-M40C-DLS |
M40*1.5 |
40 |
22-32 |
9 |
43 |
50 |
10 |
|
JX-M48-DLS |
M48*2.0 |
48 |
22-32 |
9 |
48 |
50/52 |
5 |
|
JX-M50-DLS |
M50*1.5 |
50 |
30-38 |
9 |
50 |
55/58 |
5 |
|
JX-M56-DLS |
M56*2.0 |
56 |
30-38 |
9 |
50 |
58 |
5 |
|
JX-M63A-DLS |
M63*1.5 |
63 |
37-44 |
10 |
50 |
65/70 |
5 |
|
JX-M63B-DLS |
M63*1.5 |
63 |
42-53 |
10 |
52 |
75 |
5 |
|
JX-M64-DLS |
M64*2.0 |
64 |
37-44 |
10 |
52 |
65/70 |
5 |
