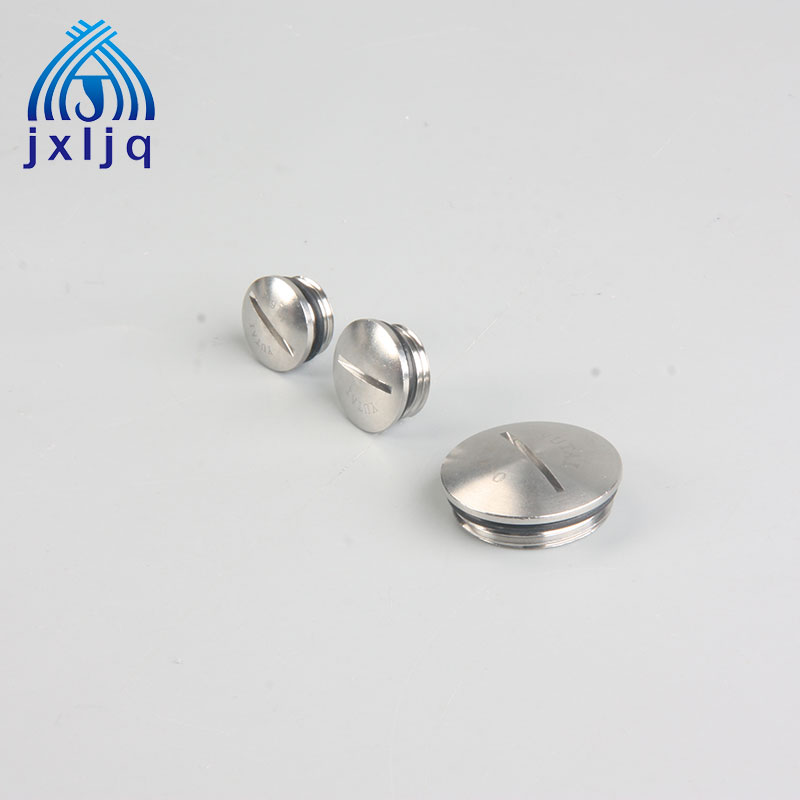

Stainless steel screw cap
Material: Stainless Steel 304/316
Sealing: Modified Rubber
Shape: Hexagonal,Round
Protection Degree: IP66
Temperature: -40 DEG to 100 DEG, short time to 120 DEG
Products
Material: Stainless Steel 304/316
Sealing: Modified Rubber
Shape: Hexagonal,Round
Protection Degree: IP66
Temperature: -40 DEG to 100 DEG, short time to 120 DEG
Features: In order to close the reserved holes or extra holes, make the product beautiful, it can keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant.
Certificate: CE, Exd IIC Gb/Ex e II GB
Note: Customization is available. Welcome to inquire.
|
EX Stainless Steel Screw Cap- Metric, PG Thread |
|||||
|
Round Series Model |
Hexagon Series Model |
Thread specification AG |
Thread length GL (mm) |
H(mm) |
D(mm) |
|
JX-PG7-SSC |
JX-HPG7-SSC |
PG7 |
5 |
8 |
14 |
|
JX-PG9- SSC |
JX-HPG9- SSC |
PG9 |
6 |
9 |
17 |
|
JX-PG11- SSC |
JX-HPG11- SSC |
PG11 |
6 |
9 |
20 |
|
JX-PG13.5- SSC |
JX-HPG13.5- SSC |
PG13.5 |
6.5 |
9.5 |
22 |
|
JX-PG16- SSC |
JX-HPG16- SSC |
PG16 |
6.5 |
9.5 |
24 |
|
JX-PG21- SSC |
JX-HPG21- SSC |
PG21 |
7 |
11 |
30 |
|
JX-PG29- SSC |
JX-HPG29- SSC |
PG29 |
8 |
12 |
39 |
|
JX-PG36- SSC |
JX-HPG36- SSC |
PG36 |
9 |
15 |
50 |
|
JX-PG42- SSC |
JX-HPG42- SSC |
PG42 |
10 |
16 |
57 |
|
JX-PG48- SSC |
JX-HPG48- SSC |
PG48 |
10 |
16 |
64 |
|
JX-M12- SSC |
JX-HM12- SSC |
M12 |
5 |
8 |
14 |
|
JX-M16- SSC |
JX-HM16- SSC |
M16 |
6 |
9 |
17 |
|
JX-M18- SSC |
JX-HM18- SSC |
M18 |
6 |
9 |
20 |
|
JX-M20- SSC |
JX-HM20- SSC |
M20 |
6.5 |
9.5 |
22 |
|
JX-M22- SSC |
JX-HM22- SSC |
M22 |
6.5 |
9.5 |
24 |
|
JX-M24- SSC |
JX-HM24- SSC |
M24 |
6.5 |
10 |
27 |
|
JX-M25- SSC |
JX-HM25- SSC |
M25 |
6.5 |
10 |
27 |
|
JX-M30- SSC |
JX-HM30- SSC |
M30 |
6.5 |
10 |
33 |
|
JX-M32- SSC |
JX-HM32- SSC |
M32 |
7 |
11 |
35 |
|
JX-M36- SSC |
JX-HM36- SSC |
M36 |
8 |
12 |
39 |
|
JX-M40- SSC |
JX-HM40- SSC |
M40 |
8 |
13 |
43 |
|
JX-M47- SSC |
JX-HM47- SSC |
M47 |
9 |
15 |
50 |
|
JX-M50- SSC |
JX-HM50- SSC |
M50 |
9 |
15 |
55 |
|
JX-M54- SSC |
JX-HM54- SSC |
M54 |
10 |
16 |
57 |
|
JX-M60- SSC |
JX-HM60- SSC |
M60 |
10 |
16 |
64 |
|
JX-M63- SSC |
JX-HM63- SSC |
M63 |
10 |
16 |
66 |
|
JX-M72- SSC |
JX-HM72- SSC |
M72 |
10 |
16 |
75 |

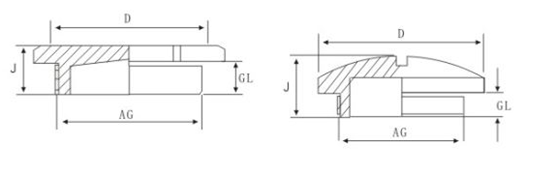

The Drawing of Stainless Steel Screw Cap:
