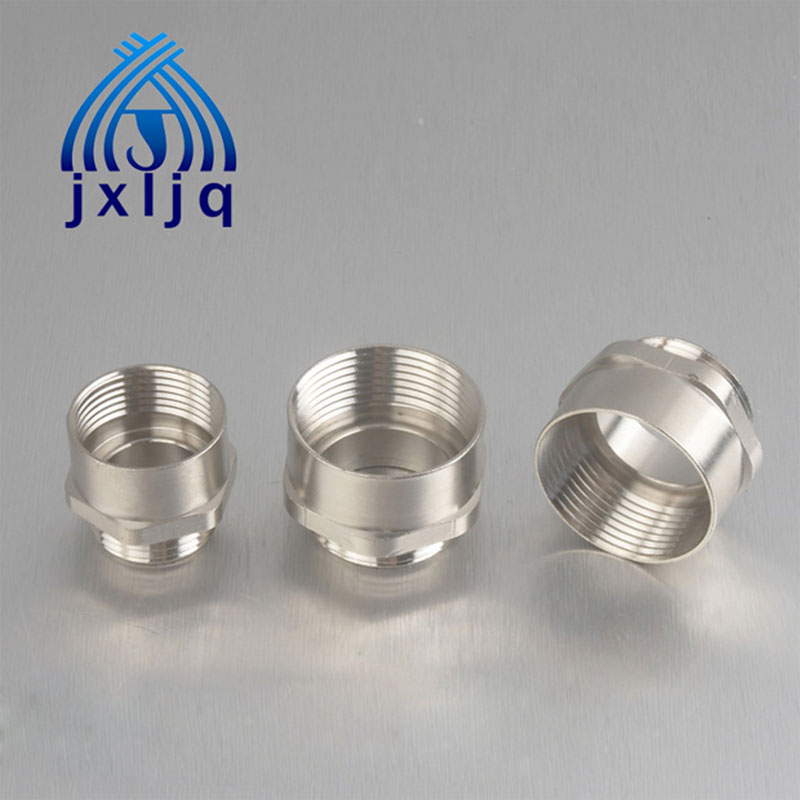

Brass Adaptor
Material: Brass with nickel-plated
Shape: hexagonal or round
Certificate: CE, IP68
Features: This product can transform different threads OD freely;
Products
Material: Brass with nickel-plated
Shape: hexagonal or round
Certificate: CE, IP68
Features: This product can transform different threads OD freely;
Function: An adaptor is used if the dimensions of existing tapped Holes are too small for a given gland. It provides a means of connection between cable entry devices and equipment having dissimilar threads.
Accessories: Locknut, Sealing washer
Note: We can produce different thread lengths and the other sides of threads (not standard) as the requirement of customer.
|
Adaptor |
||||||
|
Round Series No. |
Hexagon Series No. |
Specifications |
thread length (GL) mm |
Height (H) mm |
hex size (D) mm |
|
|
male (D1) |
female (D2) |
|||||
|
JX-M12/M16A-EN |
JX-M12/M16B-EN |
M12*1.5 |
M16*1.5 |
6 |
8.5 |
18 |
|
JX-M16/M20A-EN |
JX-M16/M20B-EN |
M16*1.5 |
M20*1.5 |
6.5 |
9 |
24 |
|
JX-M20/M25A-EN |
JX-M20/M25B-EN |
M20*1.5 |
M25*1.5 |
7.5 |
10 |
30 |
|
JX-M25/M32A-EN |
JX-M25/M32B-EN |
M25*1.5 |
M32*1.5 |
8 |
11.5 |
39 |
|
JX-M32/M40A-EN |
JX-M32/M40B-EN |
M32*1.5 |
M40*1.5 |
9 |
12.5 |
43 |
|
JX-M40/M50A-EN |
JX-M40/M50B-EN |
M40*1.5 |
M50*1.5 |
10 |
14 |
57 |
|
JX-M50/M63A-EN |
JX-M50/M63B-EN |
M50*1.5 |
M63*1.5 |
10 |
14 |
64 |
|
JX-PG7/PG9A-EN |
JX-PG7/PG9B-EN |
PG7 |
PG9 |
6 |
8.5 |
17 |
|
JX-PG9/PG11A-EN |
JX-PG9/PG11B-EN |
PG9 |
PG11 |
6.5 |
8.5 |
20 |
|
JX-PG11/PG13.5A-EN |
JX-PG11/PG13.5B-EN |
PG11 |
PG13.5 |
6.5 |
9 |
22 |
|
JX-PG13.5/PG16A-EN |
JX-PG13.5/PG16B-EN |
PG13.5 |
PG16 |
6.5 |
9.5 |
24 |
|
JX-PG16/PG21A-EN |
JX-PG16/PG21B-EN |
PG16 |
PG21 |
7.5 |
10 |
30 |
|
JX-PG21/PG29A-EN |
JX-PG21/PG29B-EN |
PG21 |
PG29 |
8 |
11.5 |
39 |
|
JX-PG29/PG36A-EN |
JX-PG29/PG36B-EN |
PG29 |
PG36 |
9 |
12.5 |
50 |
|
JX-PG36/PG42A-EN |
JX-PG36/PG42B-EN |
PG36 |
PG42 |
10 |
14 |
57 |
|
JX-PG42/PG48A-EN |
JX-PG42/PG48B-EN |
PG42 |
PG48 |
10 |
14 |
64 |
|
JX-NPT3/8"-NPT1/2"A-EN |
JX-NPT3/8"-NPT1/2"B-EN |
NPT3/8" |
NPT1/2" |
6.5 |
9 |
24 |
|
JX-NPT1/2"-NPT3/4"A-EN |
JX-NPT1/2"-NPT3/4"B-EN |
NPT1/2" |
NPT3/4" |
7.5 |
10 |
30 |
|
JX-NPT3/4"-NPT1"A-EN |
JX-NPT3/4"-NPT1"B-EN |
NPT3/4" |
NPT1" |
8 |
11.5 |
39 |
|
JX-NPT1"-NPT1-1/4"A-EN |
JX-NPT1"-NPT1-1/4"B-EN |
NPT1" |
NPT1-1/4" |
9 |
12.5 |
50 |
