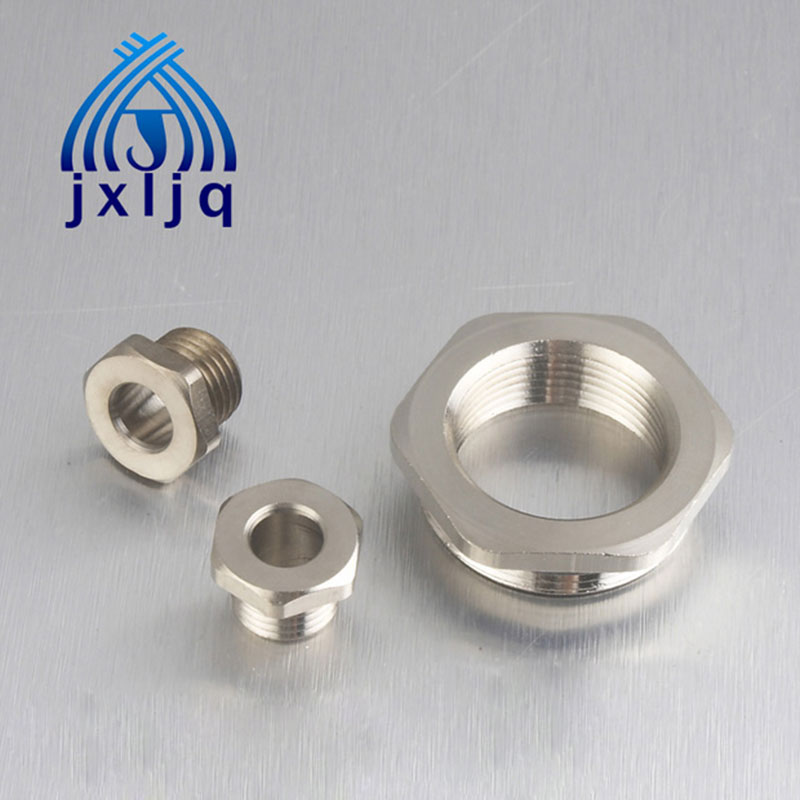

Brass Reducer
Material: Brass with nickel-plated
Working Temperature: -40 Degree to 100 Degree, short time to 120 Degree
Shape: hexagonal or round
Certificate: CE,IP68
Material: Brass with nickel-plated
Working Temperature: -40 deg to 100 deg, short time to 120 deg
Shape: hexagonal or round
Certificate: CE,IP68
Features: This product can transform different threads OD freely; Change larger Thread to smaller Thread.
Function: A reducer is used if the dimensions of existing tapped Holes are too large for a given gland. It provides a means of connection between cable entry devices and equipment having dissimilar Threads.
Accessories: Locknut, Sealing Washer
Note: We can produce different thread lengths and the other sides of threads (not standard) as the requirement of customer.
|
Reducer |
|||||||
|
Circle Series |
Hexagon series |
Item |
Thread length (GL) mm |
Height (H)mm |
Hexagon size (D)mm |
||
|
Male thread (D1) |
|||||||
|
JX-M16/12A-RE |
JX-M16/12B-RE |
M16*1.5 |
M12*1.5 |
6 |
8.5 |
18 |
|
|
JX-M20/16A-RE |
JX-M20/16B-RE |
M20*1.5 |
M16*1.5 |
6.5 |
9 |
24 |
|
|
JX-M25/20A-RE |
JX-M25/20B-RE |
M25*1.5 |
M20*1.5 |
7.5 |
10 |
30 |
|
|
JX-M32/25A-RE |
JX-M32/25B-RE |
M32*1.5 |
M25*1.5 |
8 |
11.5 |
40 |
|
|
JX-M40/32A-RE |
JX-M40/32B-RE |
M40*1.5 |
M32*1.5 |
9 |
12.5 |
43 |
|
|
JX-M50/40A-RE |
JX-M50/40B-RE |
M50*1.5 |
M40*1.5 |
10 |
14 |
57 |
|
|
JX-M63/50A-RE |
JX-M63/50B-RE |
M63*1.5 |
M50*1.5 |
10 |
14 |
64 |
|
|
JX-PG9/PG7A-RE |
JX-PG9/PG7B-RE |
PG9 |
PG7 |
6 |
8.5 |
17 |
|
|
JX-PG11/PG9A-RE |
JX-PG11/PG9B-RE |
PG11 |
PG9 |
6.5 |
8.5 |
20 |
|
|
JX-PG13.5/PG11A-RE |
JX-PG13.5/PG11B-RE |
PG13.5 |
PG11 |
6.5 |
9 |
22 |
|
|
JX-PG16/PG13.5A-RE |
JX-PG16/PG13.5B-RE |
PG16 |
PG13.5 |
6.5 |
9.5 |
24 |
|
|
JX-PG21/PG16A-RE |
JX-PG21/PG16B-RE |
PG21 |
PG16 |
7.5 |
10 |
30 |
|
|
JX-PG29/PG21A-RE |
JX-PG29/PG21B-RE |
PG29 |
PG21 |
8 |
11.5 |
40 |
|
|
JX-PG36/PG29A-RE |
JX-PG36/PG29B-RE |
PG36 |
PG29 |
9 |
12.5 |
50 |
|
|
JX-PG42/PG36A-RE |
JX-PG42/PG36B-RE |
PG42 |
PG36 |
10 |
14 |
57 |
|
|
JX-PG48/PG42A-RE |
JX-PG48/PG42B-RE |
PG48 |
PG42 |
10 |
14 |
64 |
|
|
JX-NPT1/2"-NPT3/8"A-RE |
JX-NPT1/2"-NPT3/8"B-RE |
NPT1/2" |
NPT3/8" |
6.5 |
9 |
24 |
|
|
JX-NPT3/4"-NPT1/2"A-RE |
JX-NPT3/4"-NPT1/2"B-RE |
NPT3/4" |
NPT1/2" |
7.5 |
10 |
30 |
|
|
JX-NPT1"-NPT3/4"A-RE |
JX-NPT1"-NPT3/4"B-RE |
NPT1" |
NPT3/4" |
8 |
11.5 |
40 |
|
|
JX-NPT1-1/4"-NPT1"A-RE |
JX-NPT1-1/4"-NPT1"B-RE |
NPT1-1/4" |
NPT1" |
9 |
12.5 |
50 |
|

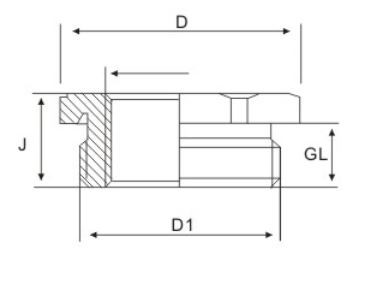

The Drawing of Reducer:
