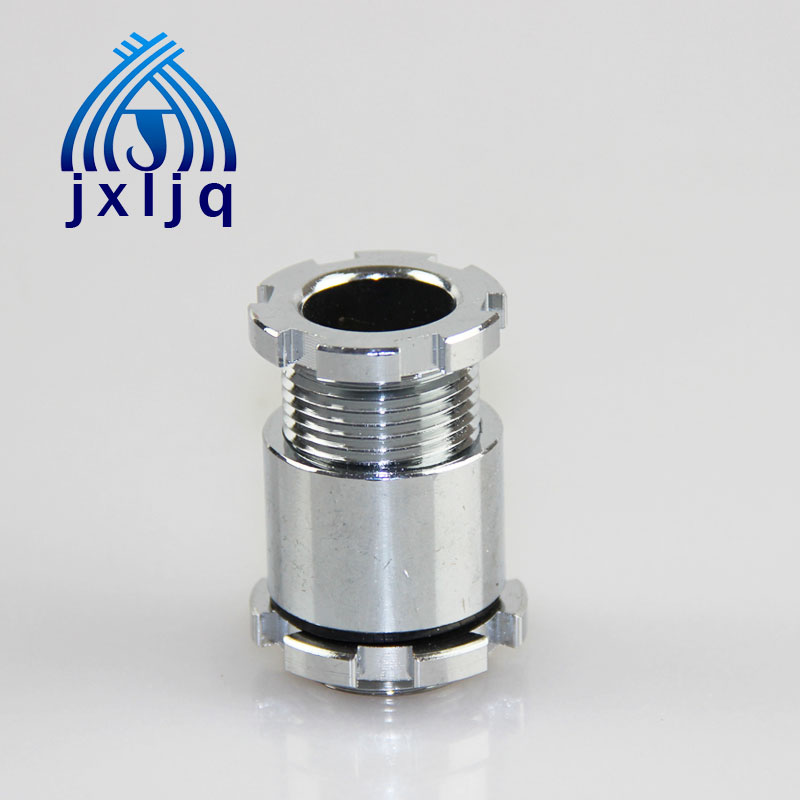

Marine Cable Gland - JIS Type

Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.

online service

Tel:+86-577-61118056
Mobile:+86-18867788668

Products

Thread Size: JIS

Material: Brass, chromium plated

Product Certification: CE certificationand ISO9001.

Protection Degree: IP54

Working temperature:  -40℃to 110℃, short time up to 120℃.

Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

More options: Customization is acceptable.Welcome to inquire.


Marine Stuffing Box- JIS Clamping Type

Product Code

Thread AG

Packing Type

Cable Range (mm)

Thread Length GL(mm)

Mounting Hole Dia (mm)

JX-JIS10A

3/8’’

A

6-7

11

18

JX-JIS10B

B

7-8

JX-JIS15A

1/2’’

A

8-9

11

22

JX-JIS15B

B

9-10

JX-JIS15C

C

9-11

JX-JIS20A

3/4’’

A

11-12

11

27

JX-JIS20B

B

12-13

JX-JIS20C

C

12-15

JX-JIS25A

1’’

A

15-16

11

34

JX-JIS25B

B

16-18

JX-JIS25C

C

16-20

JX-JIS30A

1-1/4’’

A

20-22

12

43

JX-JIS30B

B

22-24

JX-JIS30C

C

22-26

JX-JIS35A

1-1/2’’

A

26-28

12

49

JX-JIS35B

B

28-30

JX-JIS35C

C

26-30

JX-JIS40A

A

30-32

JX-JIS40B

B

32-34

JX-JIS40C

C

30-34

JX-JIS45A

2’’

A

34-36

12

61

JX-JIS45B

B

36-38

JX-JIS45C

C

36-40

JX-JIS50A

A

40-42

JX-JIS50B

B

42-44

JX-JIS50C

C

40-44

JX-JIS55A

2-1/2’’

A

44-46

12

76

JX-JIS55B

B

46-48

JX-JIS55C

C

46-50

JX-JIS60A

A

50-52

JX-JIS60B

B

52-54

JX-JIS60C

C

52-56

JX-JIS65A

3’’

A

56-58

14

89

JX-JIS65B

B

58-60

JX-JIS70A

A

60-62

JX-JIS70B

B

62-64

JX-JIS75A

A

64-66

JX-JIS75B

B

66-70

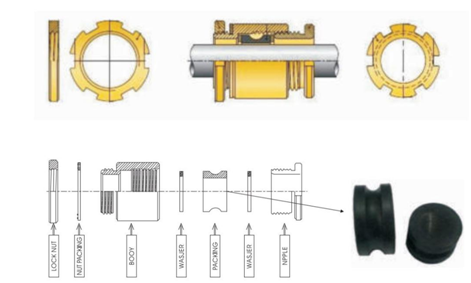

The Drawing of Marine Cable Gland:
