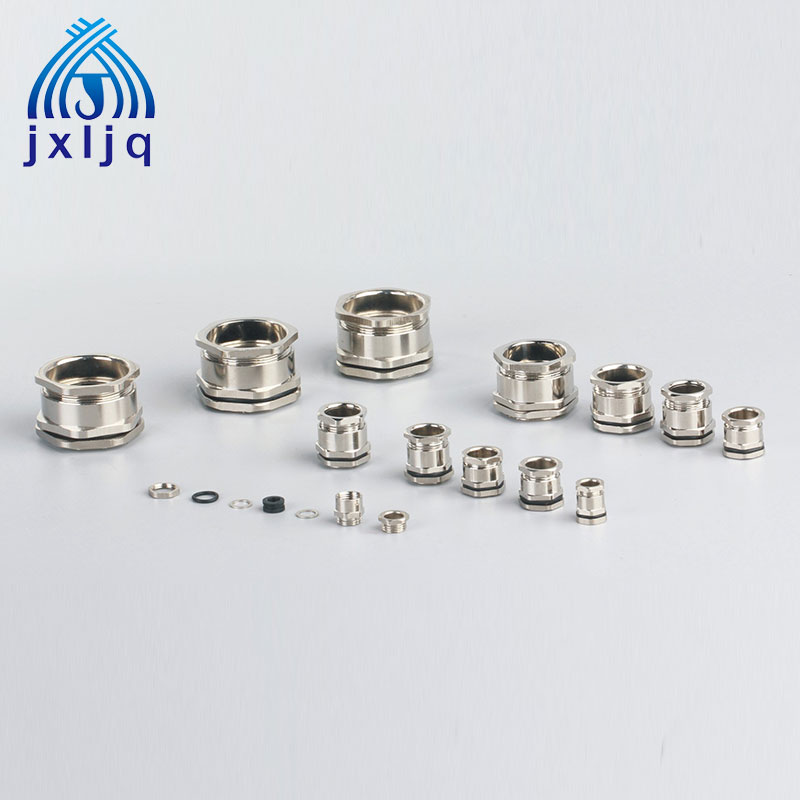

Single Compression Cable Gland
Material: Brass with nickel plated
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Products
Thread Size: PG Thread
Material: Brass with nickel plated
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Single compression Brass Cable Gland for unarmored Cable, helps in providing electrical continuity between unarmored cable and gland entry component. Also, it provides a seal on the outer sheath of the cable, thus ensuring no damage to cable sheathing. It is used both in indoor and outdoor applications, in all climatic conditions, as these are weather proof and waterproof.
More options: Customization is acceptable.Welcome to inquire.
|
Single Compression Brass Cable Gland- PG Thread |
||||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. (mm) |
Thread length GL(mm) |
Joint Length (mm) |
Spanner Size (mm) |
|
JX-PG7-SIN |
PG7 |
5-7 |
12.5 |
5 |
16.5 |
14/15 |
|
JX-PG9-SIN |
PG9 |
6-12 |
15.2 |
6.2 |
17.5 |
18/18 |
|
JX-PG11-SIN |
PG11 |
11-15 |
18.6 |
6.5 |
17.5 |
20/21 |
|
JX-PG13.5-SIN |
PG13.5 |
14-18 |
20.4 |
7.5 |
20.5 |
22/23 |
|
JX-PG16-SIN |
PG16 |
17-23 |
22.5 |
8 |
22.2 |
24/25 |
|
JX-PG21-SIN |
PG21 |
22-27 |
28.3 |
8 |
23.5 |
30/32 |
|
JX-PG29-SIN |
PG29 |
26-33 |
37 |
8 |
25.5 |
40/41 |
|
JX-PG36-SIN |
PG36 |
32-41 |
47 |
10 |
29 |
50/52 |
|
JX-PG42-SIN |
PG42 |
40-49 |
54 |
11 |
33 |
57/57 |
|
JX-PG48-SIN |
PG48 |
48-57 |
59.3 |
12 |
34 |
64/64 |

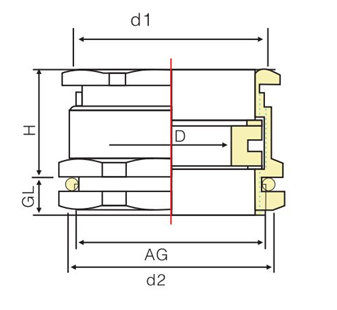

The Drawing of Single Compression Cable Gland:
