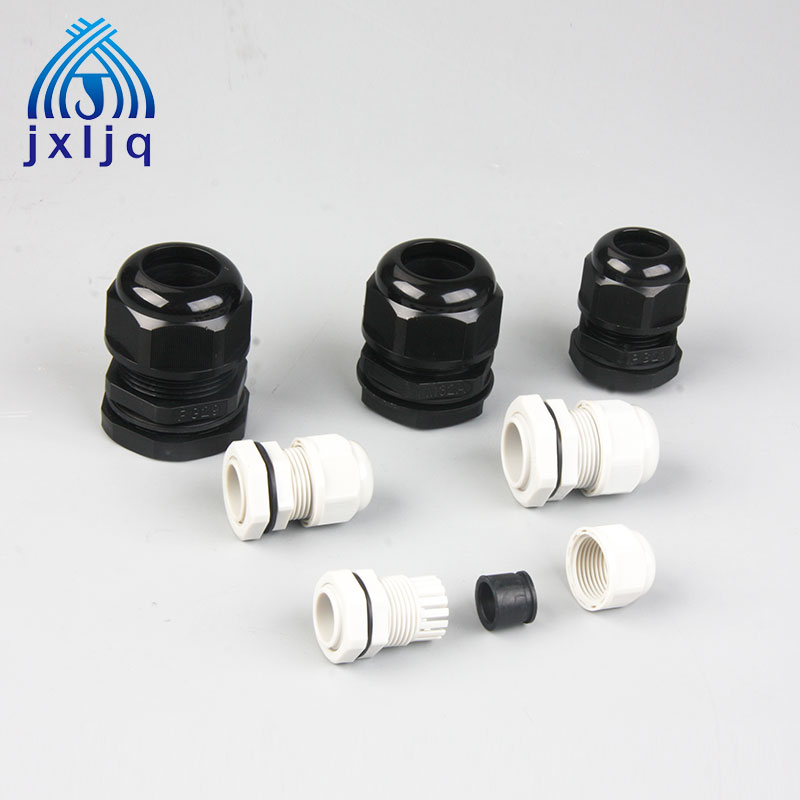

Nylon Cable Gland United Structure Metric Thread
Material: UL approved- Nylon PA66 for A.C.F Parts.
EPDM rubber is for B.D parts.
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is accept.Welcome to inquire.
|
United Structure Nylon Cable Gland-- Metric thread |
|||||
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. C1(mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-NLM8-UN |
M8*1.25 |
2-4.8 |
8 |
7.5 |
13/12 |
|
JX-NLM10-UN |
M10*1.5 |
3-6 |
10 |
8 |
15/13 |
|
JX-NLM12A-UN |
M12*1.5
|
3-6.5 |
12 |
8.5 |
18/15 |
|
JX-NLM12B-UN |
3-6.5 |
12 |
15 |
18/15 |
|
|
JX-NLM12C-UN |
3-5.5 |
12 |
8.5 |
18/19 |
|
|
JX-NLM12D-UN |
4-8 |
12 |
8.5 |
18/19 |
|
|
JX-NLM12E-UN |
3-5.5 |
12 |
15 |
18/19 |
|
|
JX-NLM12F-UN |
4-8 |
12 |
15 |
18/19 |
|
|
JX-NLM16A-UN |
M16*1.5
|
4-8 |
16 |
10 |
22/19 |
|
JX-NLM16B-UN |
4-8 |
16 |
15 |
22/19 |
|
|
JX-NLM16C-UN |
3-7 |
16 |
10 |
22/22 |
|
|
JX-NLM16D-UN |
5-10 |
16 |
10 |
22/22 |
|
|
JX-NLM16E-UN |
3-7 |
16 |
15 |
22/22 |
|
|
JX-NLM16F-UN |
5-10 |
16 |
15 |
22/22 |
|
|
JX-NLM18A-UN |
M18*1.5
|
3-7 |
18 |
10 |
24/22 |
|
JX-NLM18B-UN |
5-10 |
18 |
10 |
24/22 |
|
|
JX-NLM18C-UN |
3-7 |
18 |
15 |
24/22 |
|
|
JX-NLM18D-UN |
5-10 |
18 |
15 |
24/22 |
|
|
JX-NLM20A-UN |
M20*1.5
|
6-12.5 |
20 |
10 |
27/24 |
|
JX-NLM20B-UN |
5-11 |
20 |
11 |
27/27 |
|
|
JX-NLM20C-UN |
8.5-14 |
20 |
11 |
27/27 |
|
|
JX-NLM20D-UN |
5-11 |
20 |
15 |
27/27 |
|
|
JX-NLM20E-UN |
8.5-14 |
20 |
15 |
27/27 |
|
|
JX-NLM22A-UN |
M22*1.5
|
5-11 |
22 |
11 |
27/27 |
|
JX-NLM22B-UN |
8.5-14 |
22 |
11 |
27/27 |
|
|
JX-NLM24A-UN |
M24*1.5 |
5-11 |
24 |
11 |
27/27 |
|
JX-NLM24B-UN |
8.5-14 |
24 |
11 |
27/27 |
|
|
JX-NLM25A-UN |
M25*1.5
|
8.5-14 |
25 |
11.6 |
33/27 |
|
JX-NLM25B-UN |
7-13 |
25 |
11.6 |
33/33 |
|
|
JX-NLM25C-UN |
12.5-18 |
25 |
11.6 |
33/33 |
|
|
JX-NLM25D-UN |
7-13 |
25 |
15 |
33/33 |
|
|
JX-NLM25E-UN |
12.5-18 |
25 |
15 |
33/33 |
|
|
JX-NLM32A-UN |
M32*1.5
|
11-17.5 |
32 |
15 |
36/42 |
|
JX-NLM32B-UN |
14-22 |
32 |
15 |
41/42 |
|
|
JX-NLM32C-UN |
17-25 |
32 |
15 |
41/42 |
|
|
JX-NLM36A-UN |
M36*1.5
|
14-22 |
36 |
12 |
45/42 |
|
JX-NLM36B-UN |
17-25 |
36 |
12 |
45/42 |
|
|
JX-NLM40A-UN |
M40*1.5
|
18-25 |
40 |
15 |
50/52 |
|
JX-NLM40B-UN |
23-32 |
40 |
15 |
50/52 |
|
|
JX-NLM50A-UN |
M50*1.5
|
25-32 |
50 |
15 |
62/62 |
|
JX-NLM50B-UN |
30-41 |
50 |
15 |
62/62 |
|
|
JX-NLM63A-UN |
M63*1.5
|
29-38 |
63 |
18 |
75/65 |
|
JX-NLM63B-UN |
35-46 |
63 |
18 |
75/65 |
|

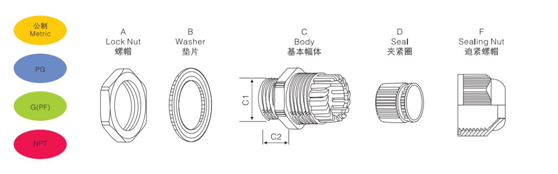

The Drawing of United Structure Nylon Cable Gland
