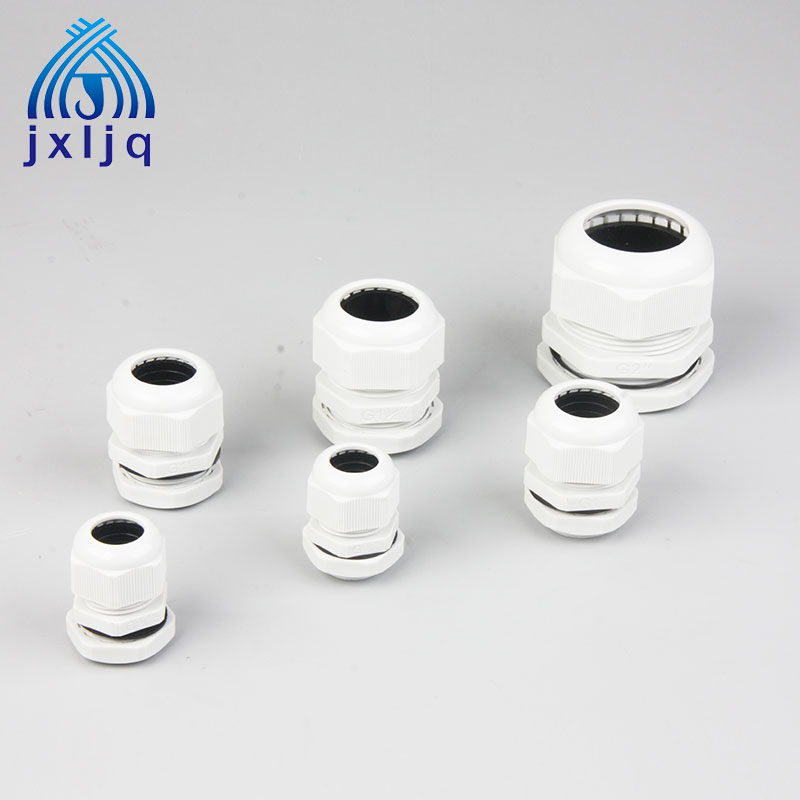

Nylon Cable Gland United Structure -PG Thread
Material: UL approved- Nylon PA66 for A.C.F Parts.
EPDM rubber is for B.D parts.
Product Certification: CE , ROHS certification and ISO9001.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
Customization is accept.Welcome to inquire.
Products
Thread Size: PG Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is accept.Welcome to inquire.
|
Product Code |
Thread AG |
Cable range(mm) |
Thread O.D. C1(mm) |
Thread length GL(mm) |
Spanner Size (mm) |
|
JX-NLPG7A-UN |
PG7
|
3-6.5 |
12.5 |
8 |
17/15 |
|
JX-NLPG7B-UN |
3-5.5 |
12.5 |
8 |
17/19 |
|
|
JX-NLPG7C-UN |
3-5.5 |
12.5 |
15 |
17/19 |
|
|
JX-NLPG7D-UN |
4-8 |
12.5 |
8 |
17/19 |
|
|
JX-NLPG7E-UN |
4-8 |
12.5 |
15 |
17/19 |
|
|
JX-NLPG9A-UN |
PG9
|
3-5.5 |
15.2 |
8.2 |
22/19 |
|
JX-NLPG9B-UN |
3-5.5 |
15.2 |
15 |
22/19 |
|
|
JX-NLPG9C-UN |
4-8 |
15.2 |
8.2 |
22/19 |
|
|
JX-NLPG9D-UN |
4-8 |
15.2 |
15 |
22/19 |
|
|
JX-NLPG11A-UN |
PG11 |
3-7 |
18.6 |
10 |
24/22 |
|
JX-NLPG11B-UN |
3-7 |
18.6 |
15 |
24/22 |
|
|
JX-NLPG11C-UN |
5-10 |
18.6 |
10 |
24/22 |
|
|
JX-NLPG11D-UN |
5-10 |
18.6 |
15 |
24/22 |
|
|
JX-NLPG13.5A-UN |
PG13.5 |
5-9 |
20.4 |
10 |
27/24 |
|
JX-NLPG13.5B-UN |
5-9 |
20.4 |
15 |
27/24 |
|
|
JX-NLPG13.5C-UN |
6-12.5 |
20.4 |
10 |
27/24 |
|
|
JX-NLPG13.5D-UN |
6-12.5 |
20.4 |
15 |
27/24 |
|
|
JX-NLPG16A-UN |
PG16 |
5-11 |
22.5 |
10.8 |
30/27 |
|
JX-NLPG16B-UN |
5-11 |
22.5 |
15 |
30/27 |
|
|
JX-NLPG16C-UN |
8.5-14 |
22.5 |
10.8 |
30/27 |
|
|
JX-NLPG16D-UN |
8.5-14 |
22.5 |
15 |
30/27 |
|
|
JX-NLPG19A-UN |
PG19
|
5-11 |
24 |
11 |
30/27 |
|
JX-NLPG19B-UN |
5-11 |
24 |
15 |
30/27 |
|
|
JX-NLPG19C-UN |
8.5-14 |
24 |
11 |
30/27 |
|
|
JX-NLPG19D-UN |
8.5-14 |
24 |
15 |
30/27 |
|
|
JX-NLPG21A-UN |
PG21
|
7-13 |
28.3 |
12 |
36/33 |
|
JX-NLPG21B-UN |
7-13 |
28.3 |
15 |
36/33 |
|
|
JX-NLPG21C-UN |
12.5-18 |
28.3 |
12 |
36/33 |
|
|
JX-NLPG21D-UN |
12.5-18 |
28.3 |
15 |
36/33 |
|
|
JX-NLPG25A-UN |
PG25 |
14-20 |
30 |
13 |
36/37 |
|
JX-NLPG25B-UN |
14-20 |
30 |
15 |
36/37 |
|
|
JX-NLPG29A-UN |
PG29
|
14-22 |
37 |
12 |
46/41 |
|
JX-NLPG29B-UN |
14-22 |
37 |
15 |
46/41 |
|
|
JX-NLPG29C-UN |
17-25 |
37 |
12 |
46/41 |
|
|
JX-NLPG29D-UN |
17-25 |
37 |
15 |
46/41 |
|
|
JX-NLPG36A-UN |
PG36
|
17-25.5 |
47 |
14 |
57/52 |
|
JX-NLPG36B-UN |
24-32 |
47 |
14 |
57/52 |
|
|
JX-NLPG42A-UN |
PG42 |
25-32 |
54 |
15 |
64/62 |
|
JX-NLPG42B-UN |
30-41 |
54 |
15 |
64/62 |
|
|
JX-NLPG48A-UN |
PG48 |
29-38 |
59.3 |
18 |
70/65 |
|
JX-NLPG48B-UN |
35-45.5 |
59.3 |
18 |
70/65 |
|

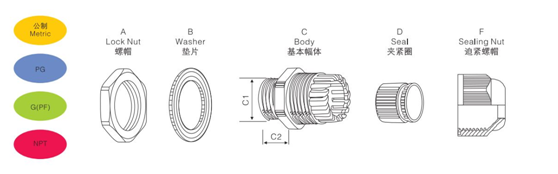

The Drawing of United Structure Nylon Cable Gland
