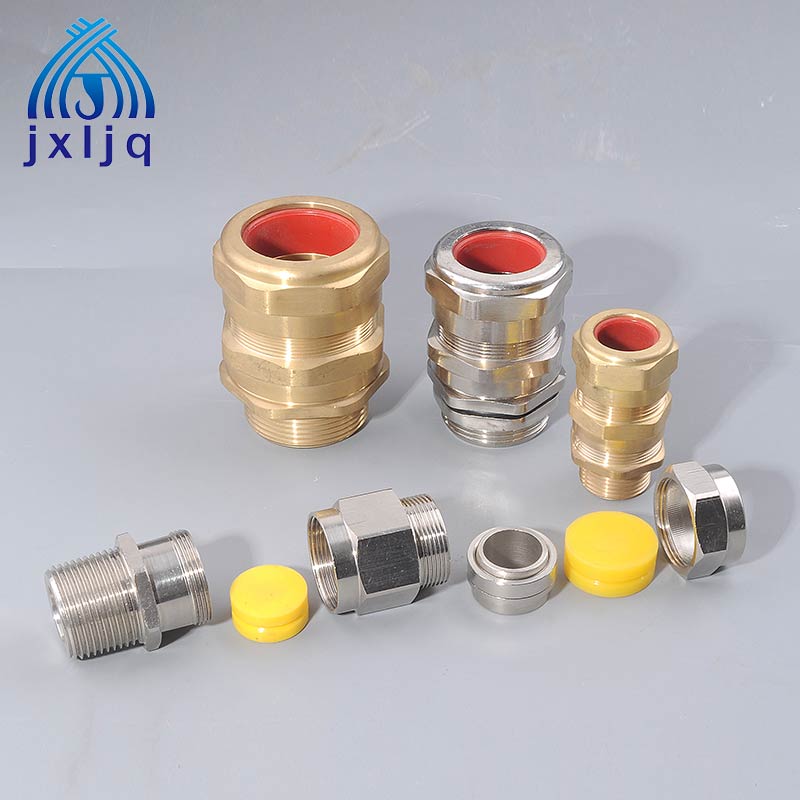

Ex Standard Cable Gland JX6 Series
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function: Suitable for clamping and fixing various types of armored cable.
1. Can be used in Hazardous division 1&2;
2. Can be used in Explosive gas atmosphere;
JX6 DOES NOT HAVE cover ring (6).

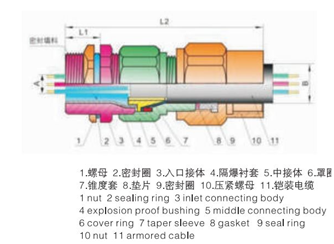

The Drawing:
|
Product Code |
Thread AG |
Outer Diameter of Cable (mm) |
Thread length L1(mm) |
Length L (mm) |
||
|
Outlet A |
Incoming Line B |
|||||
|
JX-6-EX-15A |
M16*1.5 |
- |
5-8 |
7-15 |
15 |
67 |
|
JX-6-EX-15B |
M20*1.5 |
G1/2 |
5-12 |
8-15 |
15 |
67 |
|
JX-6-EX-20 |
M25*1.5 |
G3/4 |
8-17 |
11-20 |
15 |
71 |
|
JX-6-EX-27 |
M32*1.5 |
G1 |
11-22 |
14-27 |
17 |
76 |
|
JX-6-EX-33 |
M40*1.5 |
G1 1/4 |
14-28 |
19-33 |
17 |
76 |
|
JX-6-EX-40 |
M50*1.5 |
G1 1/2 |
16-33 |
22-40 |
17 |
94 |
|
JX-6-EX-50 |
M63*1.5 |
G2 |
29-43 |
29-50 |
17 |
98 |
|
JX-6-EX-63 |
M75*1.5 |
G2 1/2 |
38-57 |
35-63 |
17 |
112 |
|
JX-6-EX-77A |
M85*1.5 |
G3S |
38-72 |
41-77 |
18 |
114 |
|
JX-6-EX-77B |
M90*1.5 |
G3 |
38-72 |
41-77 |
18 |
126 |
|
JX-6-EX-83 |
M100*1.5 |
G4S |
48-83 |
55-90 |
18 |
126 |
|
JX-6-EX-94 |
M110*1.5 |
G4 |
48-94 |
61-104 |
18 |
128 |
