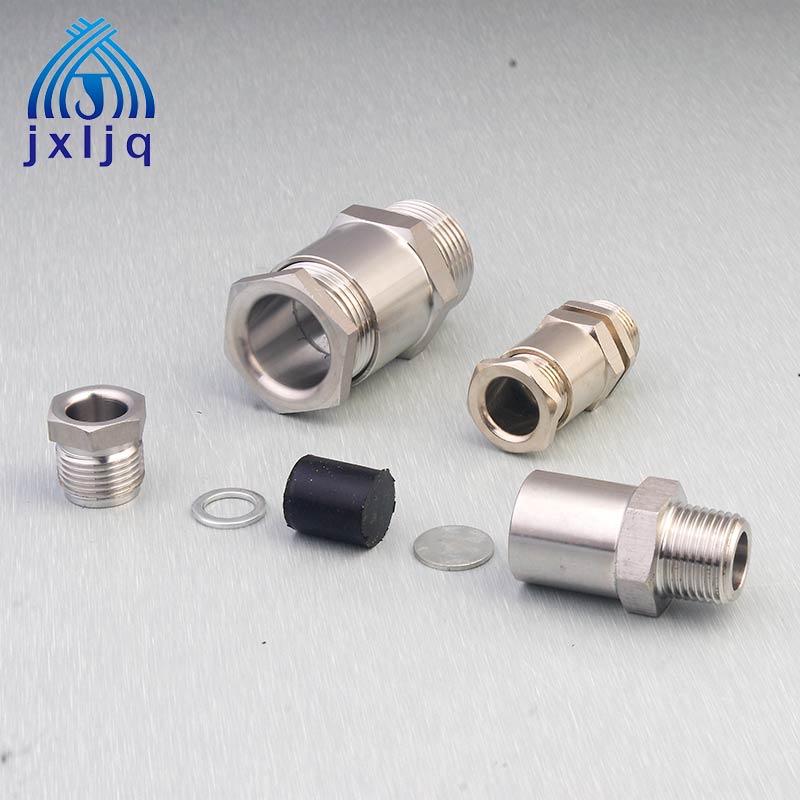

Ex Clamp Sealing Joint JX4 Series
Material: H62, SS304, 316
Surface Treatment: Nickel Plating
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Protection Grade: IP66-10 Bars, (screwed – on part)
Product
Material: H62, SS304, 316
Surface Treatment: Nickel Plating
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature: Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.
Note: The above mentioned is only used for the specification of pipe thread, thread specification for metric or NPT can be produced.

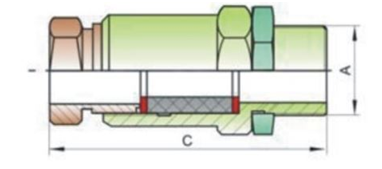

The Drawing :
|
Ex Clamp Sealing Joint JX4 - G Thread |
|||
|
Code |
A End Pipe Thread |
Cable Range (mm) |
Length C (mm) |
|
JX-4-EX-10 |
G1/2 |
7-10 |
63 |
|
JX-4-EX-14 |
G3/4 |
9-14 |
64 |
|
JX-4-EX-18 |
G1 |
12-18 |
74 |
|
JX-4-EX-26 |
G1 1/4 |
15-26 |
84 |
|
JX-4-EX-30 |
G1 1/2 |
18-30 |
86 |
|
JX-4-EX-42 |
G2 |
25-42 |
86 |
|
JX-4-EX-55 |
G2 1/2 |
29-55 |
100 |
|
JX-4-EX-65 |
G3 |
29-65 |
100 |
|
JX-4-EX-80 |
G4 |
41-80 |
100 |
