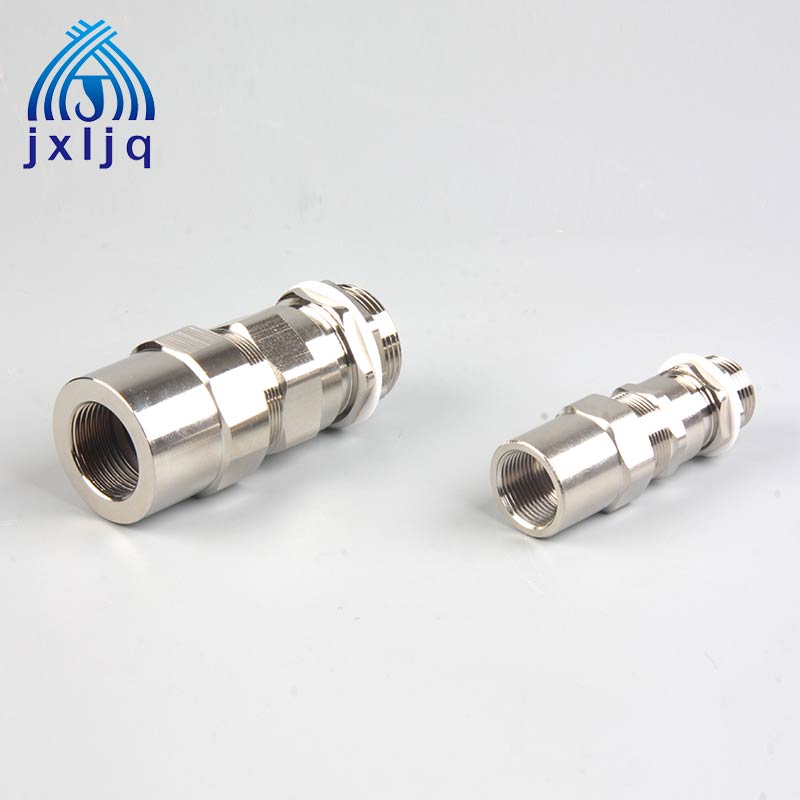

EX Clamp Sealing Joint JX3
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II is equal to II 2G EXE II (European standard) Exd II equal to II 2G Exd II (European standard).
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II is equal to II 2G EXE II (European standard) Exd II equal to II 2G Exd II (European standard).
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lp66
Function: Suitable for clamping and fixing various types of armored cable.
1. Can be used in Hazardous division 1&2;
2. Can be used in Explosive gas atmosphere;
JX3 DOES NOT HAVE cover ring (6).

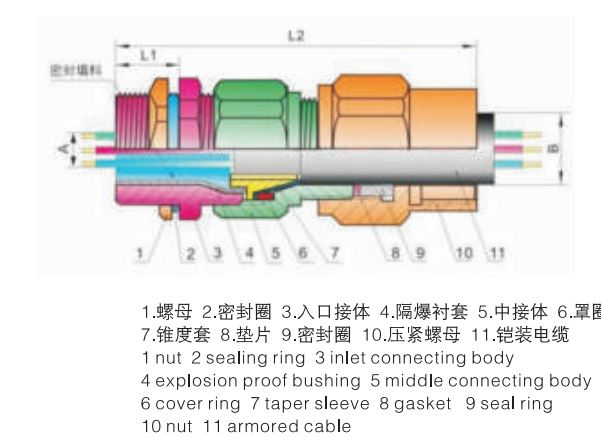

The Drawing:
|
Ex Clamp Sealing Joint JX3- Metric, G Thread |
|||||||
|
Product Code |
Thread AG |
Outer Diameter of Cable (mm) |
Thread length L1(mm) |
Length L (mm) |
Length L2 (mm) |
||
|
Outlet A |
Incoming Line B |
||||||
|
JX-3-EX-15A |
M16*1.5 |
- |
8 |
7-15 |
15 |
68 |
85 |
|
JX-3-EX-15B |
M20*1.5 |
G1/2 |
8 |
7-15 |
15 |
68 |
85 |
|
JX-3-EX-20 |
M25*1.5 |
G3/4 |
13 |
11-20 |
15 |
72 |
87 |
|
JX-3-EX-25 |
M32*1.5 |
G1 |
16 |
14-25 |
17 |
77 |
92 |
|
JX-3-EX-33 |
M40*1.5 |
G1 1/4 |
21 |
19-33 |
17 |
77 |
95 |
|
JX-3-EX-41 |
M50*1.5 |
G1 1/2 |
25 |
24-41 |
17 |
95 |
100 |
|
JX-3-EX-50 |
M63*1.5 |
G2 |
32.5 |
30-50 |
17 |
99 |
110 |
|
JX-3-EX-64 |
M75*1.5 |
G2 1/2 |
44 |
38-64 |
17 |
113 |
127 |
|
JX-3-EX-74A |
M85*1.5 |
G3S |
52 |
47-74 |
18 |
113 |
127 |
|
JX-3-EX-74B |
M90*1.5 |
G3 |
52 |
47-74 |
18 |
127 |
137 |
|
JX-3-EX-90 |
M100*1.5 |
G4S |
64 |
57-90 |
18 |
127 |
137 |
|
JX-3-EX-103 |
M110*1.5 |
G4 |
72 |
62-103 |
18 |
127 |
137 |
