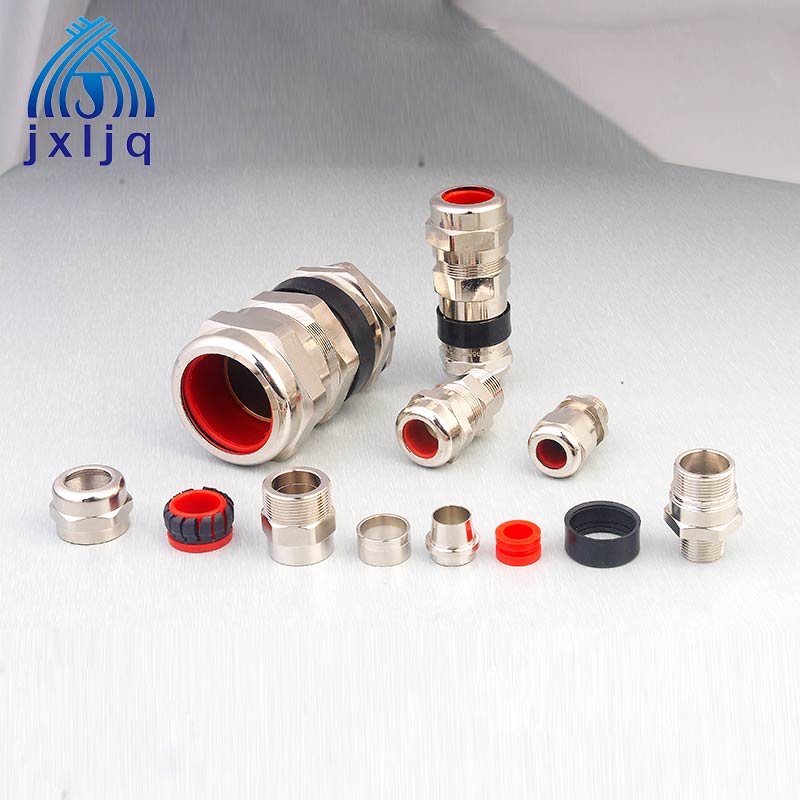

Explosion-proof Brass Double Sealed Cable Gland JX2 Series
Material: H62,SS304,316
Surface Treatment: Nickel plating, passivation
Sealing material: plastic, Neoprene
Explosion-proof Mark: Exd IIC GB
Fireproof classification: V0(UL94)
Material: H62,SS304,316
Surface Treatment: Nickel plating, passivation
Sealing material: plastic, Neoprene
Explosion-proof Mark: Exd IIC GB
Fireproof classification: V0(UL94)
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-60 °C，Max 100 °C, short time to 120°C
Environmental Conditions: High-temperatire and atrocious
Thread Options: Metric, NPT, G Thread
Note: According the customer’s requirements, the extended GL screws are available.

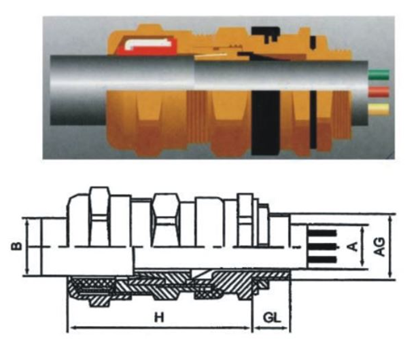

The Drawing:
|
Double Sealed Explosion-proof Cable Gland JX2 - Metric Thread |
||||||||||||
|
Code |
AG Thread |
Inner sheath/ core line |
Cable Outer diameter |
Armored cable/belt |
Max. Length (H) |
Thread Length (mm) |
Six Angle Size |
|||||
|
Metric |
NPT,G |
Core line Max |
Inner sheath |
Max core line |
Min |
Max |
Direction 1 |
Direction 2 |
On the edge |
|||
|
JX-2 -EX-12 |
M20*1.5 |
1/2’’ |
9 |
10.0 |
6 |
5.5 |
12.0 |
0.9/1.25 |
0/0.7 |
65.5 |
15 |
24.0 |
|
JX-2 -EX-16 |
M20*1.5 |
1/2’’ |
9 |
10.0 |
6 |
9.5 |
16.0 |
0.9/1.25 |
0/0.7 |
65.5 |
15 |
24.0 |
|
JX-2 -EX-20.5 |
M20*1.5 |
1/2’’-3/4’’ |
11.2 |
12.5 |
10 |
12.5 |
20.5 |
0.9/1.25 |
0/0.7 |
67.5 |
15 |
30.0 |
|
JX-2 -EX-26 |
M25*1.5 |
3/4’’-1’’ |
16.3 |
18.4 |
21 |
16.9 |
26.0 |
1.25/1.6 |
0/0.7 |
71.4 |
15 |
36.0 |
|
JX-2 -EX-33 |
M32*1.5 |
1’’-11/4’’ |
22 |
24.7 |
42 |
22.0 |
33.0 |
1.6/2.0 |
0/0.7 |
76.0 |
15 |
46.0 |
|
JX-2 -EX-41 |
M40*1.5 |
11/4’’-11/2’’ |
26.5 |
29.7 |
60 |
28.0 |
41.0 |
1.8/2.5 |
0/0.7 |
78.2 |
15 |
55.0 |
|
JX-2 -EX-52.6 |
M50*1.5 |
11/2’’-2’’ |
37.2 |
41.7 |
80 |
36.0 |
52.6 |
1.8/2.5 |
0/1.0 |
91.0 |
15 |
65.0 |
|
JX-2 -EX-65.3 |
M63*1.5 |
2’’-21/2’’ |
47.6 |
53.5 |
100 |
46.0 |
65.3 |
1.8/2.5 |
0/1.0 |
98 |
15 |
80.0 |
|
JX-2 -EX-78 |
M75*2.0 |
21/2’’-3’’ |
60 |
65.3/66.2 |
120 |
57.0 |
78.0 |
1.8/2.5 |
0/1.0 |
102.0 |
15 |
95.0 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Double Sealed EX stainless Steel Cable Gland
Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C
--151657.jpg)
EX Clamp Sealing Joint JX3
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II is equal to II 2G EXE II (European standard) Exd II equal to II 2G Exd II (European standard).
--151407.jpg)
EX Clamp Sealing Joint JX5
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
--152728.jpg)
Single Sealed EX Stainless Steel Cable Gland JX8 Series
Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to AP66
Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C
