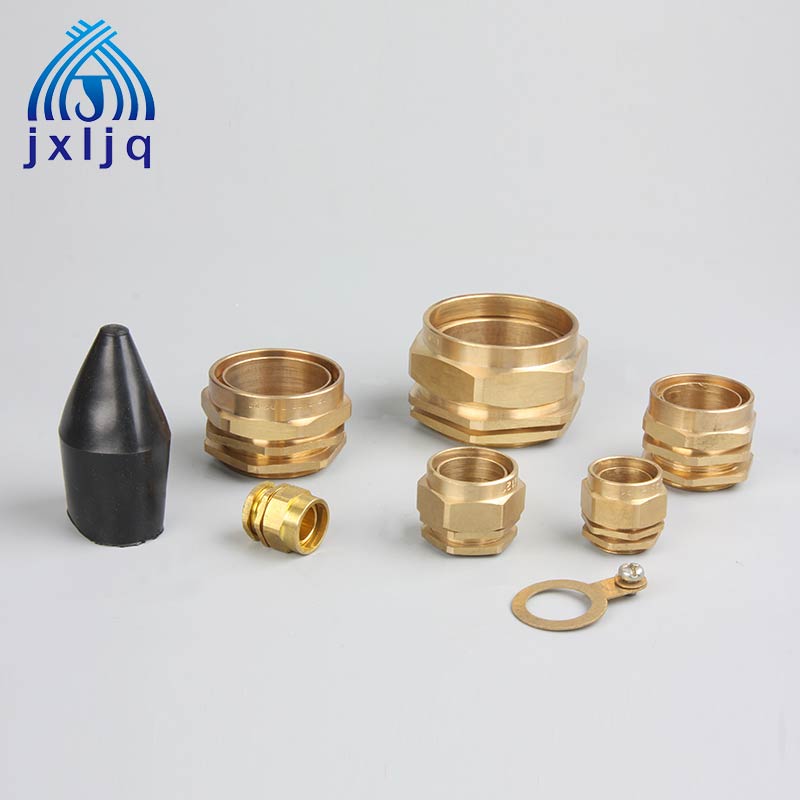

BW Cable Gland
Material: Brass or Brass, nickel plated
Standard: BS 6121-1-2005
Protection Rate: IP30
Temperature: -80°C - +600°C
Thread options: Metric, NPT, BSP& PG
Material: Brass or Brass, nickel plated
Standard: BS 6121-1-2005
Protection Rate: IP30
Temperature: -80°C - +600°C
Thread options: Metric, NPT, BSP& PG
Application: Dry Indoor for use with all types of SWA extruded Bending Cable.
Function: BW type glands provide mechanical cable retention & electrical continuity via armoured wire termination.
Cable Type: SWA Extruded Bending Cable.
Accessories: Matching accessories available like PVC Shrouds, Locknuts and earth tag.
|
BW Cable Gland – Armored, Metric, NPT Thread |
|||||
|
Code |
Thread size |
Min Thread length L(mm) |
Cable diameter(mm) |
||
|
Metric |
NPT |
Max “A” (mm) |
Max “B” (mm) |
||
|
JX-BW20S |
M20 |
1/2’’ |
10 |
11.50 |
15.50 |
|
JX-BW20L |
M20 |
1/2’’ |
10 |
14.00 |
20.50 |
|
JX-BW25S |
M25 |
3/4’’ |
10 |
18.00 |
24.00 |
|
JX-BW25L |
M25 |
3/4’’ |
10 |
20.0 |
27.00 |
|
JX-BW32S |
M32 |
1’’ |
10 |
26.3 |
33.50 |
|
JX-BW32L |
M32 |
1’’ |
10 |
26.3 |
33.50 |
|
JX-BW40S |
M40 |
1.1/4’’ |
13 |
31.5 |
39.50 |
|
JX-BW40L |
M40 |
1.1/4’’ |
13 |
32 |
40.00 |
|
JX-BW50S |
M50 |
1.1/2’’ |
13 |
38.2 |
46.30 |
|
JX-BW50L |
M50 |
2’’ |
13 |
44 |
52.60 |
|
JX-BW63S |
M63 |
2’’ |
14 |
50.1 |
59.00 |
|
JX-BW63L |
M63 |
2.1/2’’ |
14 |
56 |
65.30 |
|
JX-BW75S |
M75 |
2.1/2’’ |
15 |
62 |
71.60 |
|
JX-BW75L |
M75 |
3’’ |
15 |
68 |
78.00 |
|
JX-BW90 |
M90 |
3’’ |
20 |
80.5 |
91.00 |
