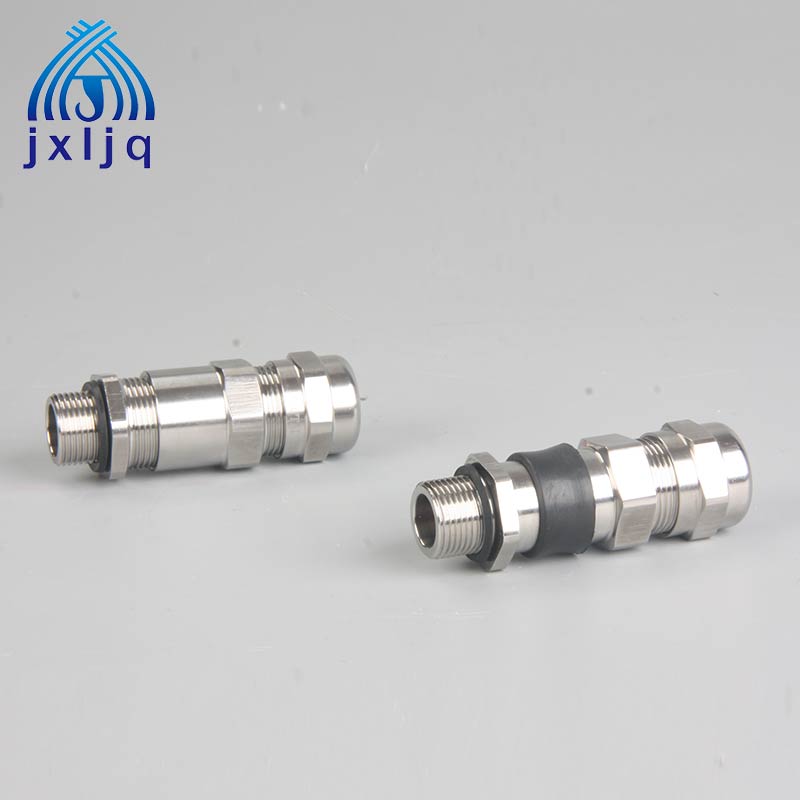

Double Sealed EX stainless Steel Cable Gland
Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C
Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C
Features: High-end design, practical, increase flood control external meter seal.
Thread Options: Metric
Application: Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,
Explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.
Ex Degreea; Exd II C Gb/Ex e II GB
Ex Degree Certificate: CNE x 14.1625X.
|
Double Sealed Explosion-proof Cable Gland - Metric Thread |
||||||||||
|
Code |
AG Thread |
Cable Range (mm) |
Armor
|
Braid
|
H (mm) |
GL (mm) |
Spanner Size (mm) |
Std. Pkg (pcs) |
||
|
Metric |
G |
Outer |
Inner |
Size |
Size |
|
||||
|
JX-2-EXS-12 |
M16*1.5 |
3/8’’ |
Φ6-12 |
Φ4-10 |
0.9/1.25 |
0/0.7 |
24 |
15 |
24 |
50 |
|
JX-2-EXS-12 |
M20*1.5 |
1/2’’ |
Φ10-16 |
Φ8-13 |
0.9/1.25 |
0/0.7 |
24 |
15 |
24 |
50 |
|
JX-2-EXS-12 |
M22*1.5 |
1/2’’ |
Φ10-16 |
Φ8-13 |
0.9/1.25 |
0/0.7 |
24 |
15 |
24 |
50 |
|
JX-2-EXS-12 |
M24*1.5 |
1/2’’ |
Φ14-16 |
Φ12-16 |
0.9/1.25 |
0/0.7 |
30 |
15 |
30 |
50 |
|
JX-2-EXS-12 |
M25*1.5 |
3/4’’ 1’’ |
Φ14-18 |
Φ12-16 |
1.25/1.6 |
0/0.7 |
40 |
15 |
40 |
50 |
|
JX-2-EXS-12 |
M30*1.5 |
1’’11/4’’ |
Φ17-23 |
Φ15-21 |
1.6/2.0 |
0.6/1.2 |
46 |
15 |
46 |
50 |
|
JX-2-EXS-12 |
M32*1.5 |
1’’11/4’’ |
Φ22-27 |
Φ20-25 |
1.6/2.0 |
0.6/1.2 |
46 |
15 |
46 |
50 |
|
JX-2-EXS-12 |
M36*2.0 |
1’’11/4’’ |
Φ22-27 |
Φ20-25 |
1.6/2.0 |
0.6/1.2 |
55 |
15 |
55 |
50 |
|
JX-2-EXS-12 |
M40*1.5 |
11/2’’ |
Φ26-33 |
Φ24-31 |
1.6/2.0 |
0.6/1.2 |
55 |
15 |
55 |
50 |
|
JX-2-EXS-12 |
M48*2.0 |
11/2’’ |
Φ26-33 |
Φ24-31 |
1.6/2.0 |
0.6/1.2 |
55 |
15 |
55 |
50 |
|
JX-2-EXS-12 |
M50*1.5 |
11/2’’ 2’’ |
Φ32-41 |
Φ27-35 |
1.6/2.0 |
0.6/1.2 |
65 |
15 |
65 |
50 |
|
JX-2-EXS-12 |
M56*2.0 |
2’’ |
Φ40-49 |
Φ35-43 |
1.6/2.0 |
0.6/1.2 |
65 |
20 |
65 |
50 |
|
JX-2-EXS-12 |
M63*1.5 |
21/2’’ |
Φ48-57 |
Φ42-50 |
1.8/2.5 |
0.6/1.2 |
20 |
80 |
50 |
|
|
JX-2-EXS-12 |
M64*2.0 |
21/2’’ |
Φ48-57 |
Φ42-50 |
1.8/2.5 |
0.6/1.2 |
80 |
20 |
80 |
50 |
|
JX-2-EXS-12 |
M75*1.5 |
3’’ |
Φ54-68 |
Φ45-58 |
1.8/2.5 |
1.0/1.5 |
96 |
20 |
96 |
50 |
|
JX-2-EXS-12 |
M87*1.5 |
3’’ |
Φ67-79 |
Φ56-67 |
1.8/2.5 |
1.0/1.5 |
114 |
20 |
114 |
20 |
|
JX-2-EXS-12 |
M100*1.5 |
4’’ |
Φ78-89 |
Φ65-75 |
1.8/2.5 |
1.0/1.5 |
138 |
20 |
138 |
10 |
