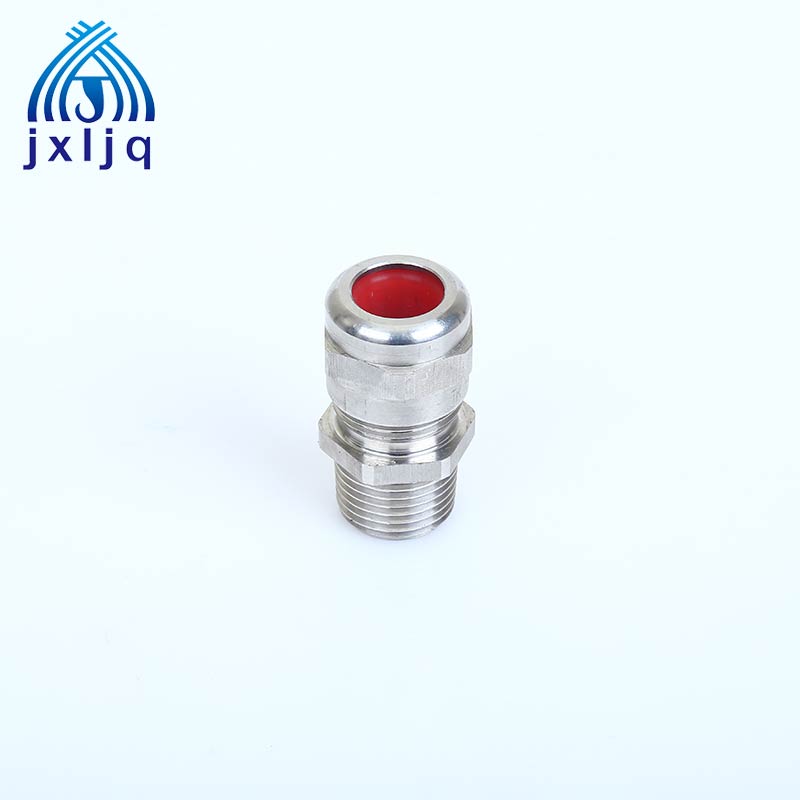

Explosion-proof Cable Gland JX1 Series
Material: H62, SS304,316
Surface Treatment: Nickel Plating, passivation
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Fireproof Classification: V0 (UL94)
Material: H62, SS304,316
Surface Treatment: Nickel Plating, passivation
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Fireproof Classification: V0 (UL94)
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature: Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.

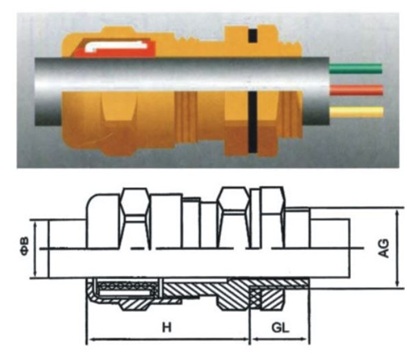

The Drawing :
|
Code |
AG Thread |
Cable Outer diameter (B) |
Max. Length (H) |
Thread Length (mm) |
Six Angle Size |
||
|
Metric |
NPT,G |
Min |
Max |
On the edge |
|||
|
JX-1-EX-12 |
M20*1.5 |
1/2’’ |
5.5 |
12.0 |
30.0 |
15 |
24.0 |
|
JX-1-EX-16 |
M20*1.5 |
1/2’’ |
9.5 |
16.0 |
30.0 |
15 |
24.0 |
|
JX-1-EX-20.5 |
M20*1.5 |
1/2’’-3/4’’ |
12.5 |
20.5 |
35.0 |
15 |
30.0 |
|
JX-1-EX-26 |
M25*1.5 |
3/4’’-1’’ |
16.9 |
26.0 |
35.0 |
15 |
36.0 |
|
JX-1-EX-33 |
M32*1.5 |
1’’-11/4’’ |
22.0 |
33.0 |
39.0 |
15 |
46.0 |
|
JX-1-EX-41 |
M40*1.5 |
11/4’’-11/2’’ |
28.0 |
41.0 |
48.0 |
15 |
55.0 |
|
JX-1-EX-52.6 |
M50*1.5 |
11/2’’-2’’ |
36.0 |
52.6 |
53.0 |
15 |
65.0 |
|
JX-1-EX-65.3 |
M63*1.5 |
2’’-21/2’’ |
46.0 |
65.3 |
58.0 |
15 |
80.0 |
|
JX-1-EX-78 |
M70*2.0 |
21/2’’-3’’ |
57.0 |
78.0 |
65.0 |
15 |
90.0 |
