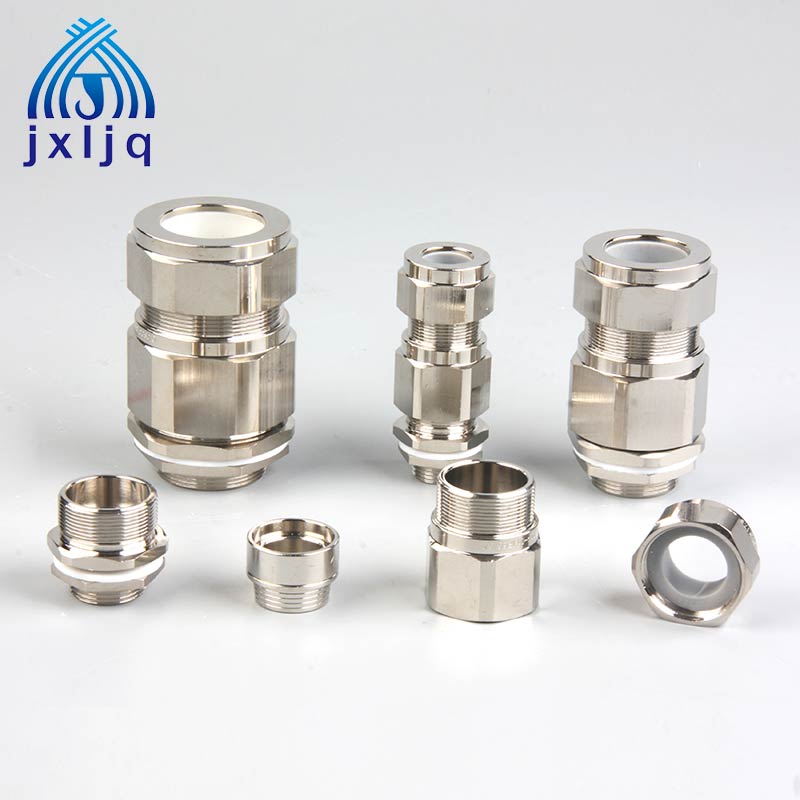

CW Cable Gland
Material: Brass with or without nickel plated
Standard: BS6121
Protection Rate: IP66 & IP67
Temperature: -20°C- +80°C
Type: CW (Single Compression Gland)
Material: Brass with or without nickel plated
Standard: BS6121
Protection Rate: IP66 & IP67
Temperature: -20°C- +80°C
Thread Options: Metric, NPT, BSP & PG
Application: For indoor or outdoor use with all types of SWA Cables.
Accessories: Matching accessories available like PVC Shrouds, locknuts and earth tag
Function: CW Type glands provide a seal on the outer sheath and a specific armour clamp for armored cable. The armor clam provides an electrical bond for armor cable and the gland.
CW Cable Gland – Armored, Metric, NPT Thread |
|||||||||||
Code |
Entry Thread |
Cable Dia |
Thread length L(mm) |
Entry Hole Size (mm) |
Armor
|
Braid
|
Hexagon Dimensions “H”
|
Length “ L” (mm)
|
|||
Metric |
NPT |
Outer A |
Metric |
NPT |
Metric |
NPT |
Size |
Size |
|||
JX-CW-16A |
M16/M20 |
1/2’’ |
8-13 |
15 |
15 |
17/21 |
22 |
0.9/1.25 |
0.05/0.8 |
H25*27 |
59 |
JX-CW-16B |
M16/M20 |
1/2’’ |
12-15.1 |
15 |
15 |
17/21 |
22 |
0.9/1.25 |
0.05/0.8 |
H25*27 |
59 |
JX-CW-20A |
M20 |
1/2’’/ 3/4’’ |
13-17.5 |
15 |
15/16 |
21 |
22/27 |
0.9/1.25 |
0.05/0.8 |
H31*34 |
65 |
JX-CW-20B |
M20 |
1/2’’/ 3/4’’ |
16-19.5 |
15 |
15/16 |
21 |
22/27 |
0.9/1.25 |
0.05/0.8 |
H31*34 |
65 |
JX-CW-25A |
M25 |
3/4’’ / 1’’ |
17.5-22 |
15 |
16/18 |
26 |
27/34 |
1.25/1.6 |
0.05/0.8 |
H36*39 |
70 |
JX-CW-25B |
M25 |
3/4’’ / 1’’ |
21-26 |
15 |
16/18 |
26 |
27/34 |
1.25/1.6 |
0.05/0.8 |
H36*39 |
70 |
JX-CW-32A |
M32 |
1’’ / 1.1/4’’ |
22-28 |
15 |
18/19 |
33 |
34/43 |
1.6/2.0 |
0.05/1.2 |
H45*49 |
74 |
JX-CW-32B |
M32 |
1’’ / 1.1/4’’ |
27-32 |
15 |
18/19 |
33 |
34/43 |
1.6/2.0 |
0.05/1.2 |
H55*59 |
74 |
JX-CW-40A |
M40 |
1.1/4’’ / 1.1/2’’ |
30-35 |
15 |
19/21 |
41 |
43/50 |
1.6/2.0 |
0.05/1.2 |
H55*59 |
82 |
JX-CW-40B |
M40 |
1.1/4’’ / 1.1/2’’ |
35.1-40 |
15 |
19/21 |
41 |
43/50 |
1.6/2.0 |
0.05/1.2 |
H68*73 |
82 |
JX-CW-50A |
M50 |
1.1/2’’ / 2’’ |
38-45 |
15 |
21/24 |
51 |
50/62 |
1.8/2.5 |
0.05/1.2 |
H68*73 |
88 |
JX-CW-50B |
M50 |
1.1/2’’ / 2’’ |
43-50 |
15 |
21/24 |
51 |
50/62 |
1.8/2.5 |
0.05/1.2 |
H82*88 |
88 |
JX-CW63A |
M63 |
2’’ / 2’’ |
48-53 |
15 |
24/24 |
64 |
62/74 |
1.8/2.5 |
0.05/1.2 |
H82*88 |
100 |
JX-CW63B |
M63 |
2’’ / 2.1/2’’ |
51-56 |
15 |
24/27 |
64 |
62/74 |
1.8/2.5 |
0.05/1.2 |
H82*88 |
100 |
JX-CW63C |
M63 |
2’’ / 2.1/2’’ |
55-60 |
15 |
24/27 |
64 |
62/74 |
1.8/2.5 |
0.05/1.2 |
H98*106 |
100 |
JX-CW75A |
M75 |
2.1/2’’ / 2.1/2’’ |
56-62 |
20 |
27/27 |
76 |
74/90 |
1.8/2.5 |
0.05/1.2 |
H98*106 |
121 |
JX-CW75B |
M75 |
2.1/2’’ / 2.1/2’’ |
62.1-66 |
20 |
27/27 |
76 |
74/90 |
1.8/2.5 |
0.05/1.2 |
H98*106 |
121 |
JX-CW75C |
M75 |
2.1/2’’ / 3’’ |
66.1-70 |
20 |
27/30 |
76 |
74/90 |
1.8/2.5 |
0.05/1.2 |
H98*106 |
121 |
JX-CW75D |
M75 |
2.1/2’’ / 3’’ |
68-75 |
20 |
27/30 |
76 |
74/90 |
1.8/2.5 |
0.05/1.2 |
H98*106 |
121 |
JX-CW90A |
M90 |
3’’ / 3.1/2’’ |
74-83 |
25 |
30/32 |
91 |
90/102 |
1.8/3.0 |
0.05/1.6 |
H110*120 |
133 |
JX-CW90B |
M90 |
3’’ / 3.1/2’’ |
82-90 |
25 |
30/32 |
91 |
90/102 |
1.8/3.0 |
0.05/1.6 |
H110*120 |
133 |
JX-CW100A |
M100 |
3.1/2’’ / 4’’ |
89-94 |
25 |
30 |
101 |
102/116 |
1.8/3.0 |
0.05/1.6 |
H120*130 |
145 |
JX-CW100B |
M100 |
3.1/2’’ / 4’’ |
93-98 |
25 |
30 |
101 |
102/116 |
1.8/3.0 |
0.05/1.6 |
H120*130 |
145 |
