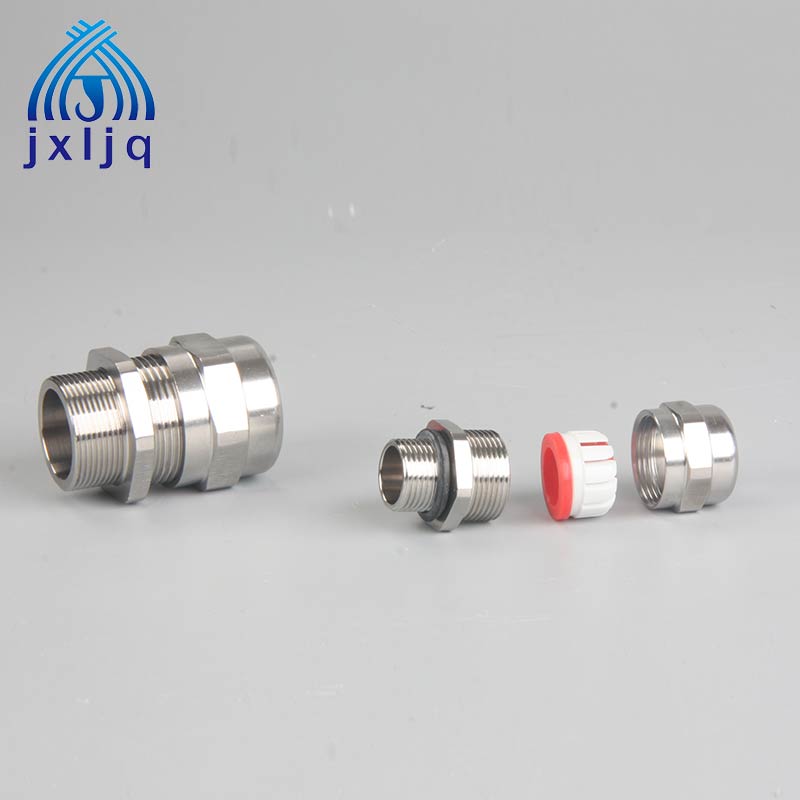

Single Sealed EX Stainless Steel Cable Gland JX8 Series

Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to AP66
Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C

online service

Tel:+86-577-61118056
Email:jx1@jxljq.net
Skype:jx1@jxljq.net
Mobile:+86-18867788668
PDF Download
Inquiry
The previous
Next

Material: SU304 for Body

Seal: High Temperature silicone

Protection Class: Within the clamping range, it can reach to AP66

Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C

Thread Options: Metric, G

Application: Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,

Electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automatic engineering line installation.

Ex Degreea; Exd II C Gb/Ex e II GB

Ex Degree Certificate: CNE x 14.1625X.


Single Sealed Ex Stainless Steel JX8 - Metric, G Thread

Code

AG Thread

Cable Range (mm)

Armor



Braid



H (mm)

GL (mm)

Spanner Size (mm)

Std. Pkg (pcs)

Metric

G

Outer

Inner

Size

Size



JX-8-EXS-12

M16*1.5

3/8’’

Φ6-12

Φ4-10

0.9/1.25

0/0.7

30

15

24

50

JX-8-EXS-16A

M20*1.5

1/2’’

Φ10-16

Φ8-13

0.9/1.25

0/0.7

30

15

24

50

JX-8-EXS-16B

M22*1.5

1/2’’

Φ10-16

Φ8-13

0.9/1.25

0/0.7

30

15

24

50

JX-8-EXS-16C

M24*1.5

1/2’’

Φ14-16

Φ12-16

0.9/1.25

0/0.7

32

15

30

50

JX-8-EXS-18

M25*1.5

3/4’’ 1’’

Φ14-18

Φ12-16

1.25/1.6

0/0.7

35

15

40

50

JX-8-EXS-23

M30*1.5

1’’11/4’’

Φ17-23

Φ15-21

1.6/2.0

0.6/1.2

39

15

46

50

JX-8-EXS-27A

M32*1.5

1’’11/4’’

Φ22-27

Φ20-25

1.6/2.0

0.6/1.2

39

15

46

50

JX-8-EXS-27B

M36*2.0

1’’11/4’’

Φ22-27

Φ20-25

1.6/2.0

0.6/1.2

39

15

55

50

JX-8-EXS-33A

M40*1.5

11/2’’

Φ26-33

Φ24-31

1.6/2.0

0.6/1.2

43

15

55

50

JX-8-EXS-33B

M48*2.0

11/2’’

Φ26-33

Φ24-31

1.6/2.0

0.6/1.2

43

15

55

50

JX-8-EXS-41

M50*1.5

11/2’’ 2’’

Φ32-41

Φ27-35

1.6/2.0

0.6/1.2

48

15

65

50

JX-8-EXS-49

M56*2.0

2’’

Φ40-49

Φ35-43

1.6/2.0

0.6/1.2

48

20

65

50

JX-8-EXS-57A

M63*1.5

21/2’’

Φ48-57

Φ42-50

1.8/2.5

0.6/1.2

53

20

80

50

JX-8-EXS-57B

M64*2.0

21/2’’

Φ48-57

Φ42-50

1.8/2.5

0.6/1.2

53

20

80

50

JX-8-EXS-68

M75*1.5

3’’

Φ54-68

Φ45-58

1.8/2.5

1.0/1.5

58

20

96

50

JX-8-EXS-79

M87*1.5

3’’

Φ67-79

Φ56-67

1.8/2.5

1.0/1.5

64

20

114

20

JX-8-EXS-89

M100*1.5

4’’

Φ78-89

Φ65-75

1.8/2.5

1.0/1.5

70

20

138

10

For NPT Thread

JX-8-EXS-12

M16*1.5

3/8’’

Φ6-12

Φ4-10

0.9/1.25

0/0.7

30

15

24

50

JX-8-EXS-16

M20*1.5

1/2’’

Φ10-16

Φ8-13

0.9/1.25

0/0.7

30

15

24

50

JX-8-EXS-18

M22*1.5

3/4’’

Φ14-18

Φ12-16

0.9/1.25

0/0.7

35

15

40

50

JX-8-EXS-23

M24*1.5

1’’

Φ17-23

Φ15-21

1.6/2.0

0.6/1.2

39

15

46

50

JX-8-EXS-27

M25*1.5

11/4’’

Φ22-27

Φ20-25

1.6/2.0

0.6/1.2

43

15

55

50

JX-8-EXS-33

M30*1.5

11/2’’

Φ26-33

Φ24-31

1.6/2.0

0.6/1.2

43

15

55

50
